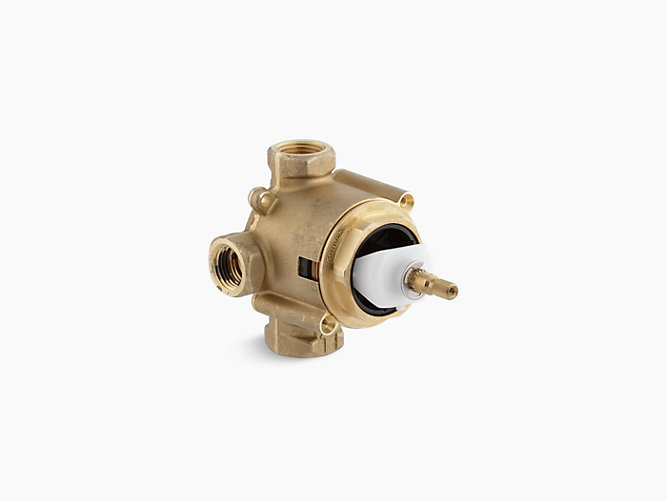

Kohler K-728-K-NA MasterShower 3/4 inch In-Wall 2- or 3-Way Transfer Valve
Item SKU - 728-K-NA by Kohler
EDP - 827592
Product Description
MasterShower
The MasterShower transfer valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components to six different outputs, and can also easily be configured as a two-way transfer valve.
Features
- MasterShower transfer valvve ships as a three-way transfer valve, but can easily be configured for use as a two-way transfer valve
- Patented K-joint installation ensures consistent trim appearance, regardless of variability in valve rough-in (included with trim)
- Required transfer valve trim works in both two- and three-way applications
- Controls all functions from a single valve
- 18.0 gpm (gallons per minute) flow rate when using one outlet and 20.8 gpm flow rate when using two outlets
- 3/4-inch NPT inlet connection and three 1/2-inch NPT outlet connections
- Requires transfer valve trim (sold separately)
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Type
Ports
Line Size
GPM
Stops
Warranty
Kohler K-728-K-NA MasterShower 3/4 inch In-Wall 2- or 3-Way Transfer Valve
Item SKU - 728-K-NA by Kohler (EDP 827592)
Product Description
MasterShower
The MasterShower transfer valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components to six different outputs, and can also easily be configured as a two-way transfer valve.
Features
- MasterShower transfer valvve ships as a three-way transfer valve, but can easily be configured for use as a two-way transfer valve
- Patented K-joint installation ensures consistent trim appearance, regardless of variability in valve rough-in (included with trim)
- Required transfer valve trim works in both two- and three-way applications
- Controls all functions from a single valve
- 18.0 gpm (gallons per minute) flow rate when using one outlet and 20.8 gpm flow rate when using two outlets
- 3/4-inch NPT inlet connection and three 1/2-inch NPT outlet connections
- Requires transfer valve trim (sold separately)
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Type |
|
|
Ports |
|
|
Line Size |
|
|
GPM |
|
|
Stops |
|
|
Warranty |
|
