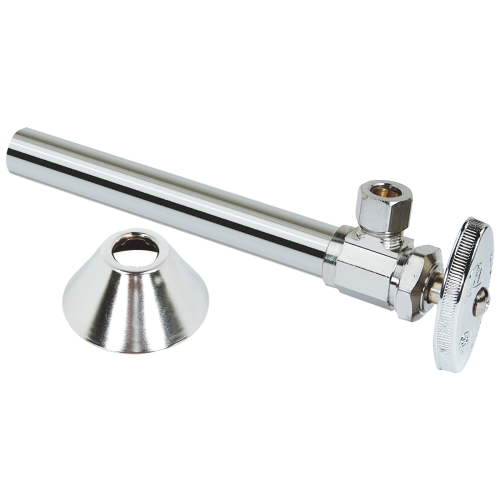

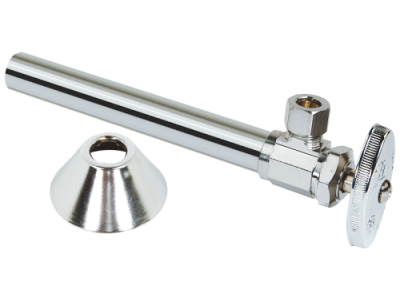

Brasscraft CS40BX C 1/2 inch x 3/8 inch O.D. Multi-Turn Sweat Angle Stop With 5" Extension and Escutcheon
Item SKU - CS40BX C by Brasscraft
EDP - 1026695
Product Description
Overview
BrassCraft 1/2 in. Nominal Sweat Inlet x 3/8 in. OD Compression Outlet Multi-Turn Angle Valve with 5 in. Sweat Extension Tube & Bell Escutcheon controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water.
Features
- Machined, 1-piece body construction for strength, durability and long-lasting performance
- 1/2 in. Nom Sweat x 3/8 in. OD Comp with 5 in. Extension Tube & Bell Escutcheon
- Compatible with copper
- For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 Degrees F. For those applications, use our KT(TM) series ball stops.
- Multi-turn operation means water flow control with only a few turns of the handle
- Oval-knurled handle provides a secure grip for on/off operation
- Easy-to-remove handle protects against accidental operation during rough-ins
- Temperature rating: 40 Degrees to 140 DegreesF
- Pressure rating: 125 psi maximum
- No-lead certified
- IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
- Designed, machined and assembled in the USA
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
P1 Size
P1 Connection
P2 Size
P2 Connection
Valve Mechanism
Angled
Handle Type
Extension Sleeve Length
Finish
Lead-Free
