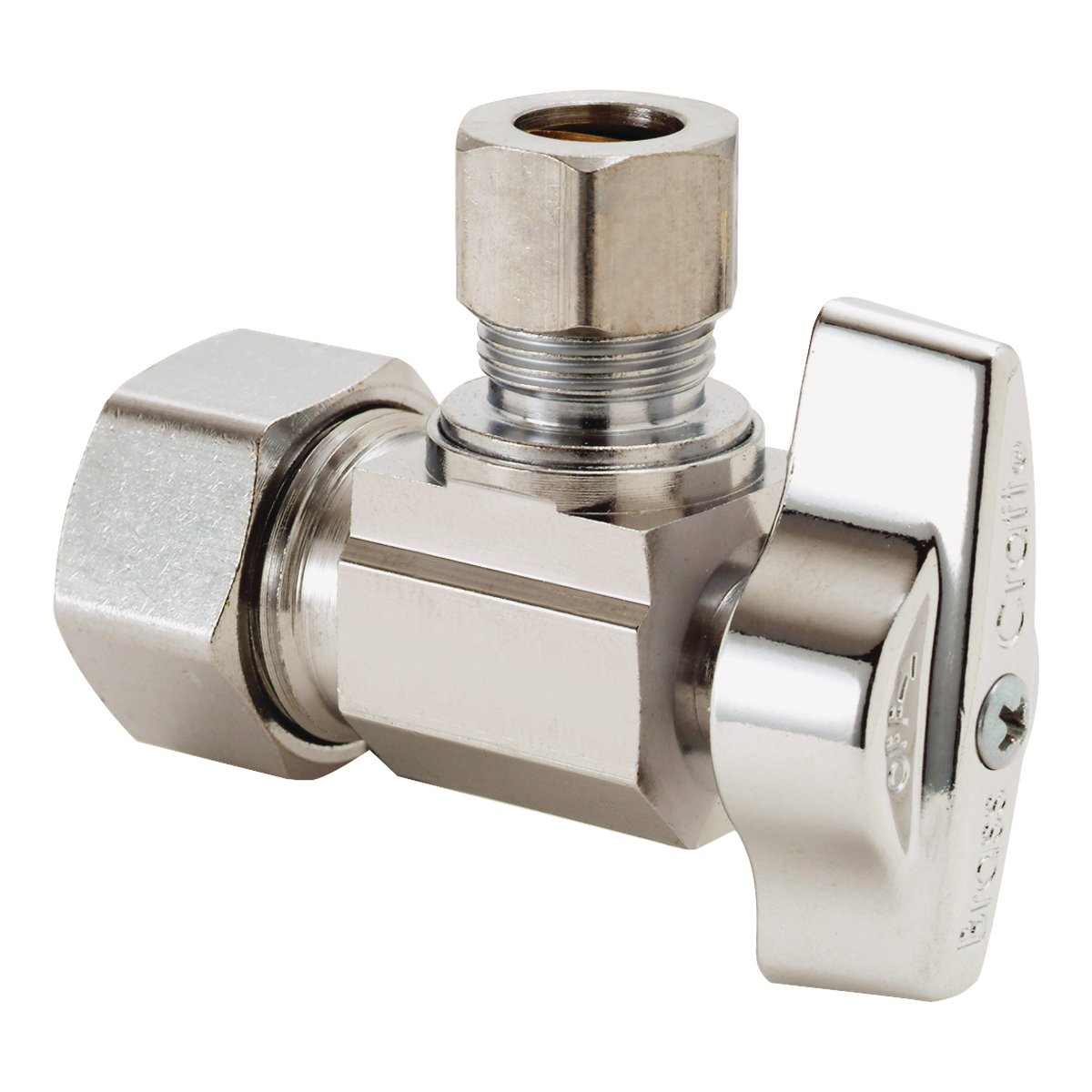

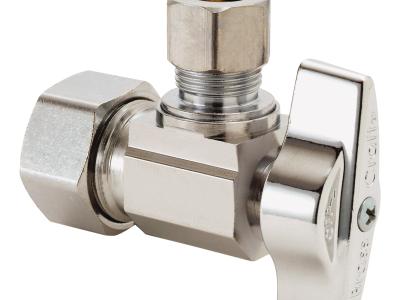

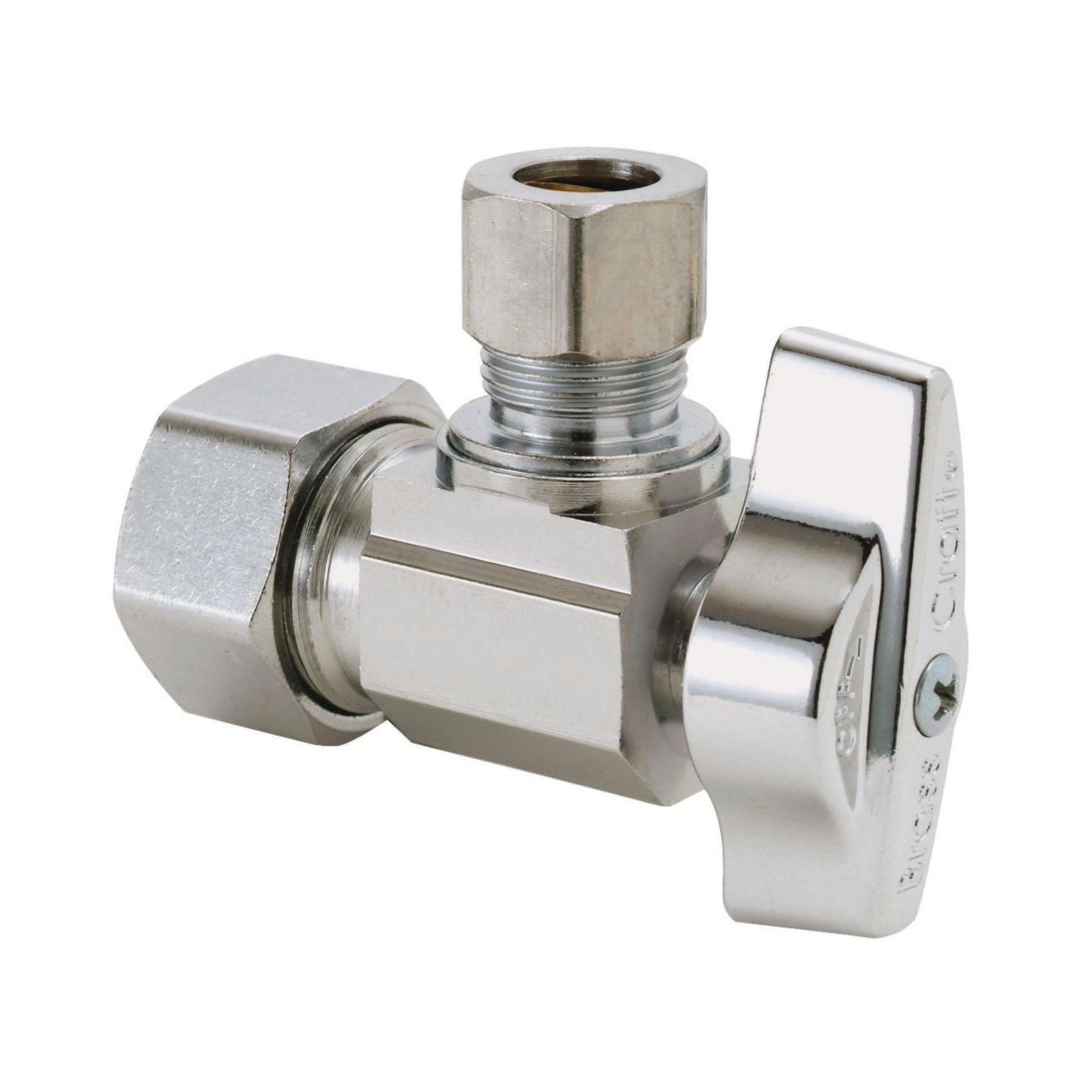

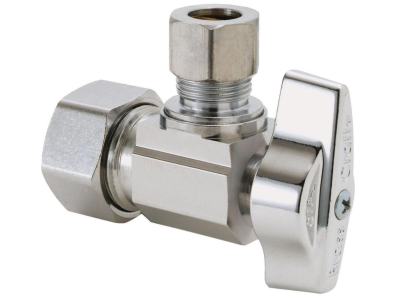

Brasscraft KTCR19X C 1/2 inch x 3/8 inch O.D. 1/4-Turn Angle Stop Valve - Chrome
Item SKU - KTCR19X C by Brasscraft
EDP - 1026703
Please Login for Pricing
Product Description
Features
- Machined one-piece brass body provides strength, durability and long-lasting performance

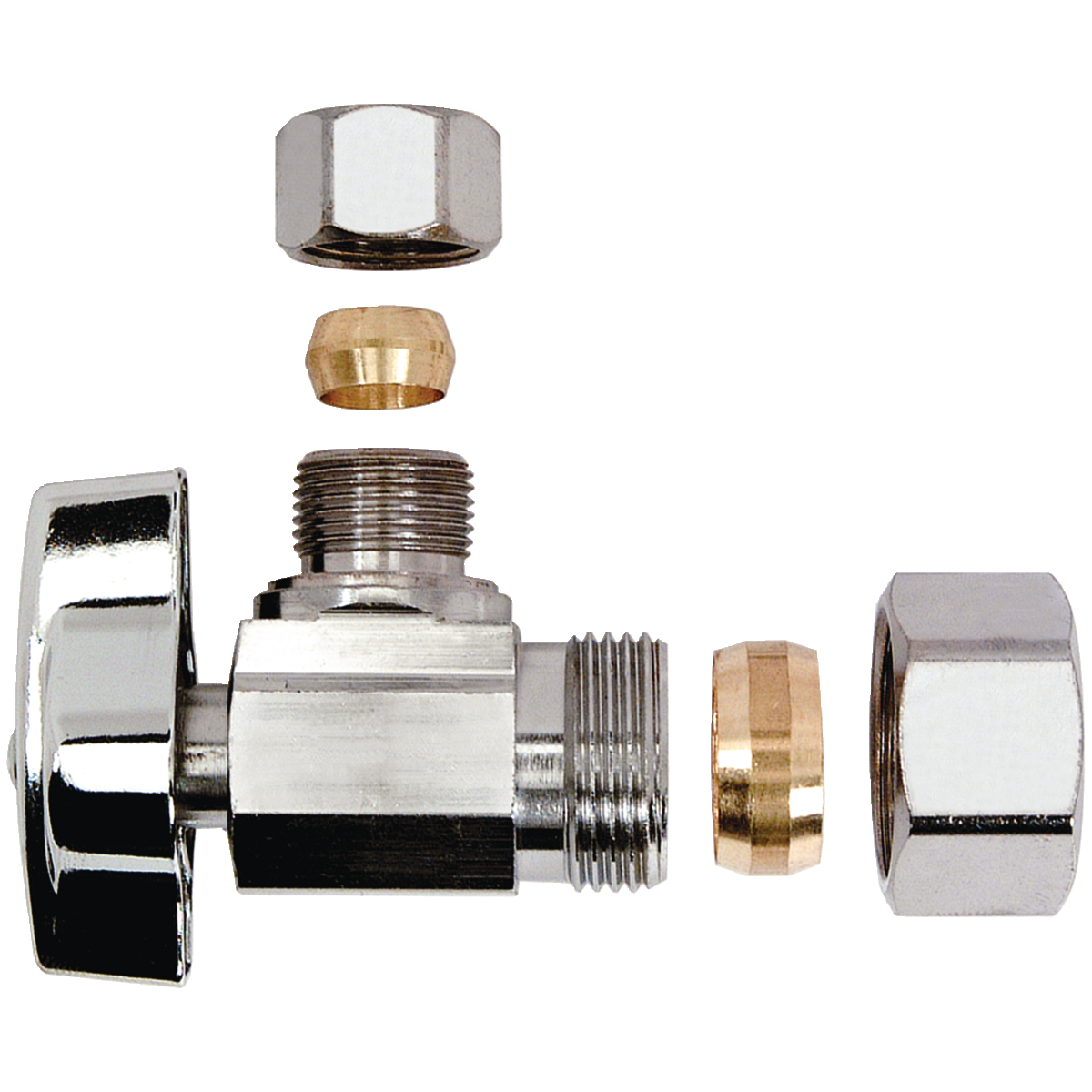

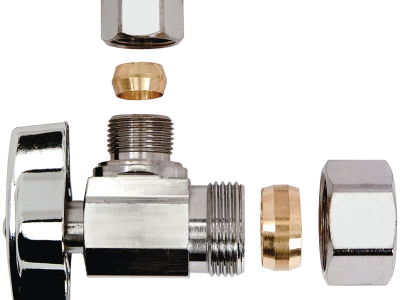

- 1/2 in. Nom Comp Inlet x 3/8 in. OD Comp Outlet 1/4-Turn Angle Ball Stop
- Copper
- For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115 F
- Precision-machined brass ball to provide smoother operation without freeze ups even after long periods of non-use
- Blow-out proof, plated stem is assembled from the inside with double o-rings to help ensure safe, reliable performance
- Easy-to-remove handle protects against accidental operation during rough-ins
- Easy-to-remove handle protects against accidental operation during rough-ins
- 100% leak tested to ensure reliable, leak-free performance
- Indoor
- Temperature rating: 40 to 180 F
- Pressure rating: 125 psi maximum
- IAPMO ASME A112.18.1/CSA B125.1
- Designed, machined and assembled in the USA
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Brass
P1 Size
1/2
P1 Connection
Compression
P2 Size
3/8 OD
P2 Connection
Compression
Valve Mechanism
1/4 Turn Ball
Angled
Yes
Handle Type
Lever
Finish
Chrome
Lead-Free
No
