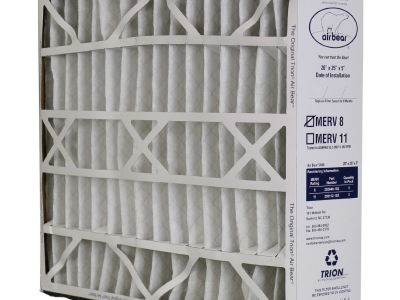

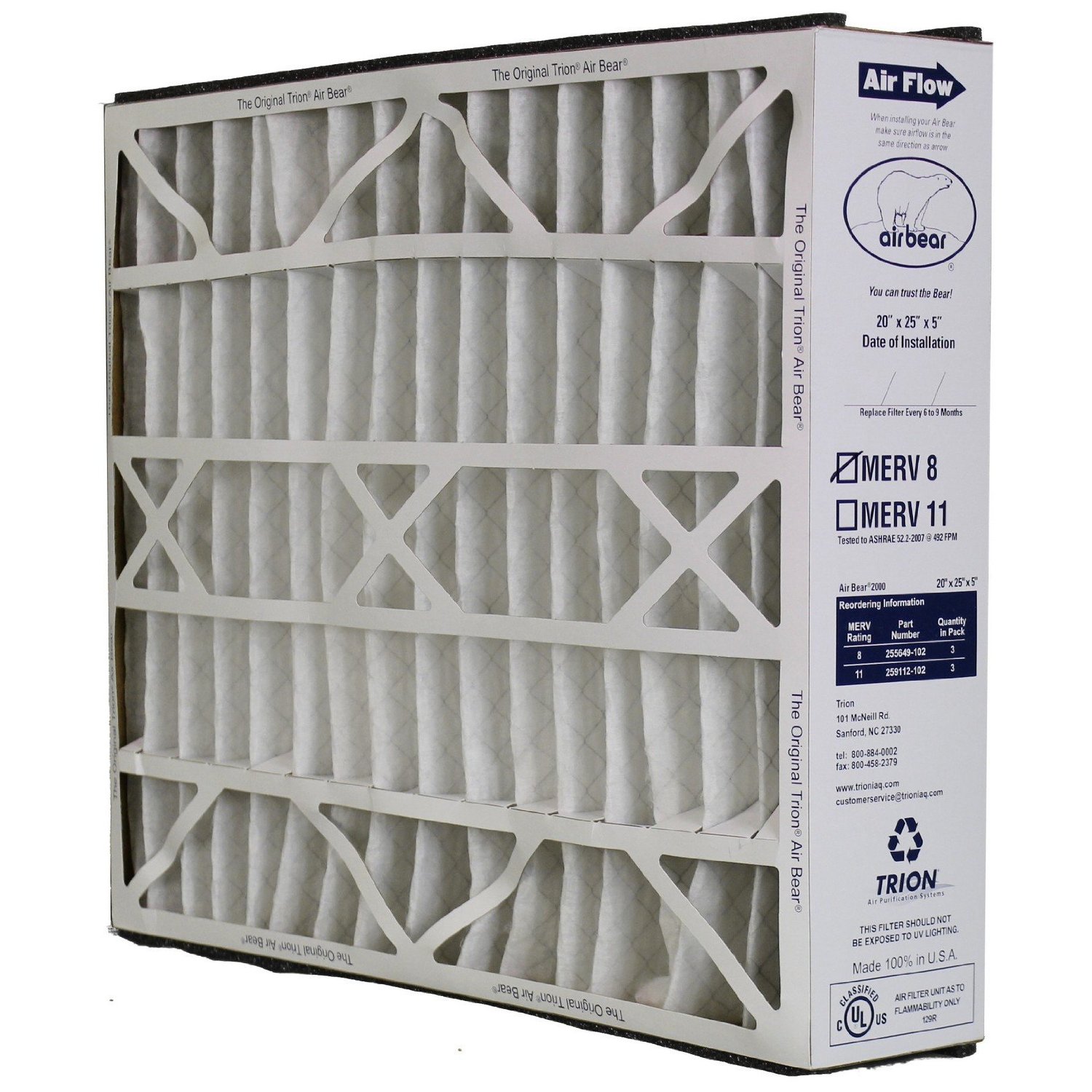

Trion 255649-102 20 inch x 25 inch x 5 inch Air Bear Filter
Item SKU - 255649-102 by Trion
EDP - 328616
Product Description
Performance
- Non-woven, 5" thick, pleated Air Bear(R) media filter traps particles as small as one micron.
- Tested using ANSI/ASHRAE 52.2 - 2007 standard procedures
- Efficiency rating of MERV 8 or MERV 11 available.
- Fits models from Generalaire(R), Skuttle(R), Ultravation(R).
- Fits other popular models of media air cleaners.
Features
- Mechanical MERV 8 filter maintains efficiency under all operating conditions.
- Highly-efficient MERV 11 filter, electrostatically-charged synthetic material, provides superior efficiency with minimal added pressure drop.
- Available in a wide variety of sizes.
- Finger supported vertical pleats remain evenly spaced while maximizing dirt holding capacity at the lowest pressure drop.
- Suitable for use with all types of forced-air HVAC configurations.
- Factory installed, double gasket, top and bottom, eliminates filter bypass.
- Galvanized rust-resistant wire mesh, integral width filter media, supports media and retains pleat shape even when dirty.
- Moisture resistant frame retains strength and shape even in high humidity.
- UL900 listed
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Length (inches)
19.75
Width (inches)
4.94
Height (inches)
24.25
MERV Rating
8
Pleated
Yes
Trion 255649-102 20 inch x 25 inch x 5 inch Air Bear Filter
Item SKU - 255649-102 by Trion (EDP 328616)
Product Description
Performance
- Non-woven, 5" thick, pleated Air Bear(R) media filter traps particles as small as one micron.
- Tested using ANSI/ASHRAE 52.2 - 2007 standard procedures
- Efficiency rating of MERV 8 or MERV 11 available.
- Fits models from Generalaire(R), Skuttle(R), Ultravation(R).
- Fits other popular models of media air cleaners.
Features
- Mechanical MERV 8 filter maintains efficiency under all operating conditions.
- Highly-efficient MERV 11 filter, electrostatically-charged synthetic material, provides superior efficiency with minimal added pressure drop.
- Available in a wide variety of sizes.
- Finger supported vertical pleats remain evenly spaced while maximizing dirt holding capacity at the lowest pressure drop.
- Suitable for use with all types of forced-air HVAC configurations.
- Factory installed, double gasket, top and bottom, eliminates filter bypass.
- Galvanized rust-resistant wire mesh, integral width filter media, supports media and retains pleat shape even when dirty.
- Moisture resistant frame retains strength and shape even in high humidity.
- UL900 listed
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Length (inches) |
|
|
Width (inches) |
|
|
Height (inches) |
|
|
MERV Rating |
|
|
Pleated |
|
