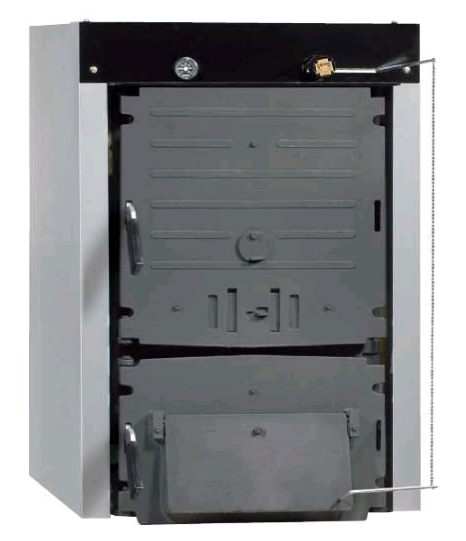

Biasi B3WOOD-6 Wood/Coal Water Boiler less Circulator
Item SKU - B3WOOD-6 by Biasi
EDP - 984308
Please Login for Pricing
Product Description
Features
- 104,000 BTU output with wood - 133,000 BTU output with coal - Cast Iron Triple Pass through sections - 20 inch long firebox
- Steel jacket - Water cooled grates - Large finned firebox - Secondary combustion chamber - Does not include circulator
- Rear flue outlet - All piping and safety components are located in the rear of the boiler - Front access for loading wood or coal and cleaning
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Type
Water
Heat Exchanger Material
Cast Iron
BTU Output
104000
Domestic Hot Water
No
Vent Type
Atmospheric Vent
Building Type
Residential
Length (inches)
30
Width (inches)
24
Height of Boiler (inches)
38
Vent Material
Galvanized
Supply
Female Iron Pipe 1 1/2
Return
Female Iron Pipe 1 1/2
Vent Size (inches)
7
Approximate Weight (pounds)
795
