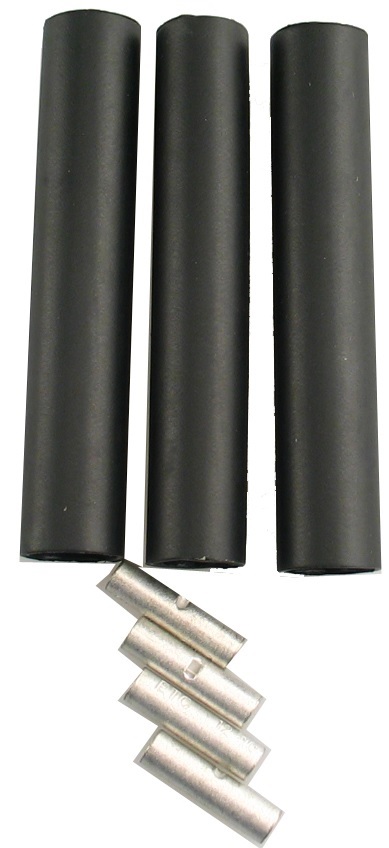

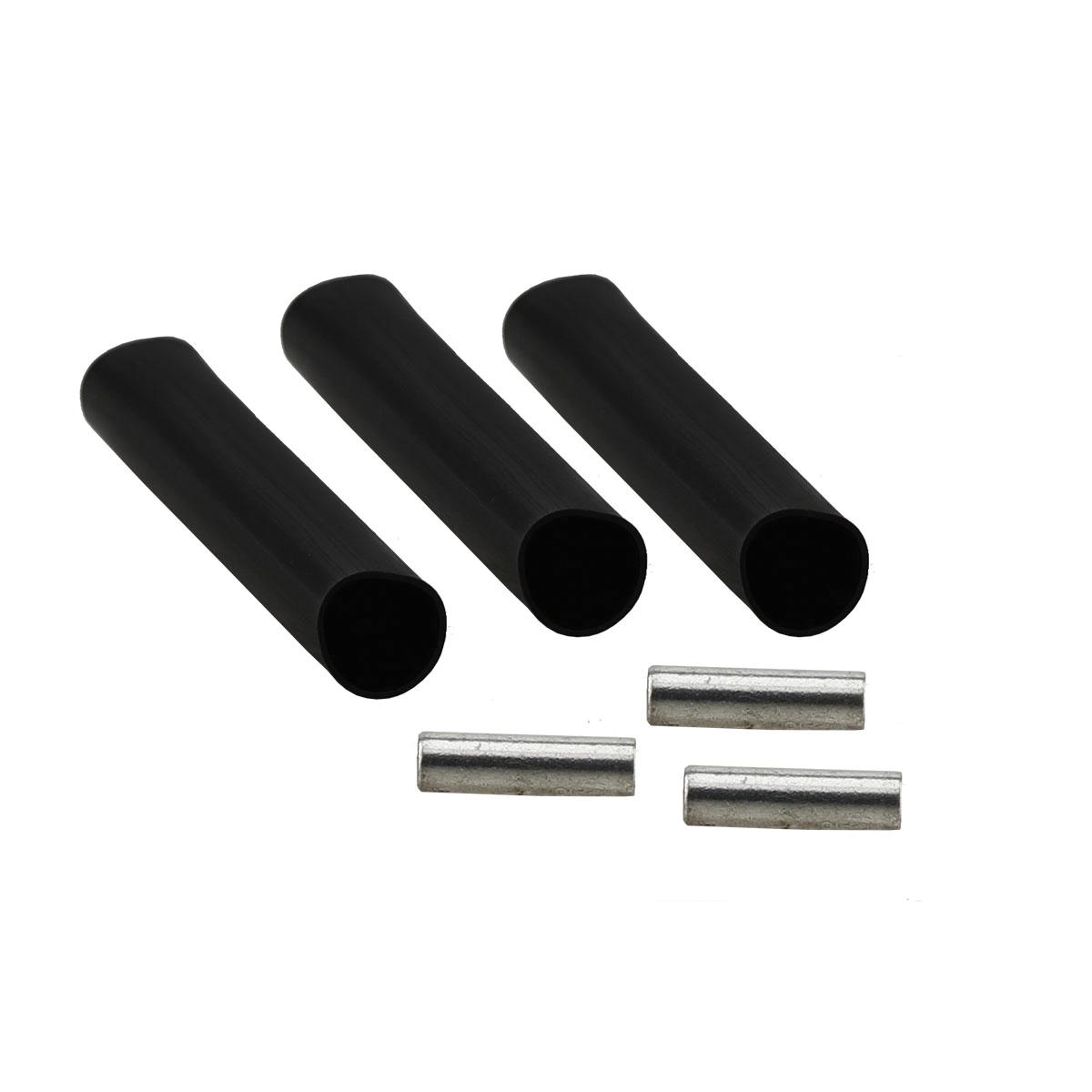

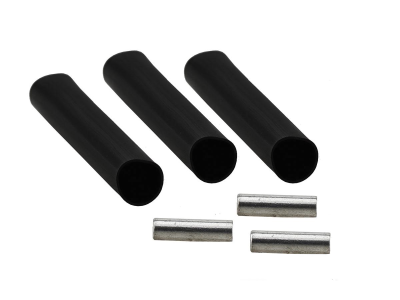

Boshart HSKB-3 HSK 3 Wire Heat Shrink Kit - Black
Item SKU - HSKB-3 by Boshart
EDP - 360364
Product Description
Overview
"HSK" Series adhesive lined cross-linked polyolefin heat shrinkable tubing is designed for applications up to 600 volts, and provides excellent sealing protection for splices, connections and jacket repairs. The good abrasion resistance characteristics of this tubing provide excellent mechanical protection. When heated above 120 degree Celsius (250 degree Fahrenheit) the tubing shrinks rapidly to a skin tight fit, forcing the melted adhesive to flow forming a flexible bond. Upon cooling the adhesive solidifies, forming a permanent, non-drying flexible and waterproof barrier. Designed for the new smaller O.D. lead wires being used on submersible pump motors.
With a 4:1 shrink ratio the tubing shrinks, unrestricted to 25% of its original diameter. The recovered wall thickness of the tubing is proportional to the degree of recovery (approx. 0.043" /1.1 mm when fully recovered).
NOTE: This tubing will shrink to its fully recovered diameter in 25-30 seconds. Time will vary depending on job site conditions and the heat source that is used.
Tube specs. - expanded I.D. = 0.45" min. recovered I.D. = 0.0102" max. nominal wall thickness = 0.043" .
Documentation
Boshart HSKB-3 HSK 3 Wire Heat Shrink Kit - Black
Item SKU - HSKB-3 by Boshart (EDP 360364)
Product Description
Overview
"HSK" Series adhesive lined cross-linked polyolefin heat shrinkable tubing is designed for applications up to 600 volts, and provides excellent sealing protection for splices, connections and jacket repairs. The good abrasion resistance characteristics of this tubing provide excellent mechanical protection. When heated above 120 degree Celsius (250 degree Fahrenheit) the tubing shrinks rapidly to a skin tight fit, forcing the melted adhesive to flow forming a flexible bond. Upon cooling the adhesive solidifies, forming a permanent, non-drying flexible and waterproof barrier. Designed for the new smaller O.D. lead wires being used on submersible pump motors.
With a 4:1 shrink ratio the tubing shrinks, unrestricted to 25% of its original diameter. The recovered wall thickness of the tubing is proportional to the degree of recovery (approx. 0.043" /1.1 mm when fully recovered).
NOTE: This tubing will shrink to its fully recovered diameter in 25-30 seconds. Time will vary depending on job site conditions and the heat source that is used.
Tube specs. - expanded I.D. = 0.45" min. recovered I.D. = 0.0102" max. nominal wall thickness = 0.043" .
