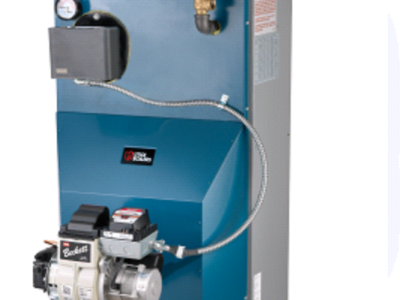

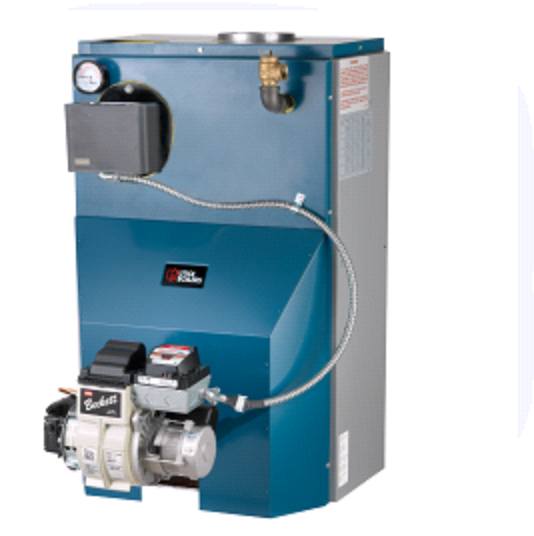

Utica SW-4100WT Direct Vent Oil Water Boiler with Beckett AFII Burner, Tankless Coil, Direct Vent Kit and Taco Circulator
Item SKU - 673504 by P&H Kit
EDP - 673504
Product Description
Features
- 140,000 BTU input - 120,000 BTU heating capacity - 85.0% AFUE - Primary, high limit and circulator controls - Beckett AFII Burner
- 4 inch flue - 2 inch feed - 1-1/2 inch return - 1-1/4 inch circulator connection - Cast iron heat exchanger - Includes Taco circulator
- Swing open burner door - Target wall - Textured painted steel jacket - Tankless coil with 3.25 gallon per minute intermittent draw
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Oil
Type
Water
Heat Exchanger Material
Cast Iron
BTU Input
140000
BTU Output
120000
Annual Fuel Usage Efficiency (AFUE)
85.0
Domestic Hot Water
Yes
Vent Type
Direct Vent
Building Type
Residential
Length (inches)
32.50
Width (inches)
21.8125
Height of Boiler (inches)
35
Vent Material
Stainless Steel
Supply
Female Iron Pipe 2
Return
Female Iron Pipe 1 1/2
Vent Size (inches)
4
Net BTU
104000
Approximate Weight (pounds)
690
Utica SW-4100WT Direct Vent Oil Water Boiler with Beckett AFII Burner, Tankless Coil, Direct Vent Kit and Taco Circulator
Item SKU - 673504 by P&H Kit (EDP 673504)
Product Description
Features
- 140,000 BTU input - 120,000 BTU heating capacity - 85.0% AFUE - Primary, high limit and circulator controls - Beckett AFII Burner
- 4 inch flue - 2 inch feed - 1-1/2 inch return - 1-1/4 inch circulator connection - Cast iron heat exchanger - Includes Taco circulator
- Swing open burner door - Target wall - Textured painted steel jacket - Tankless coil with 3.25 gallon per minute intermittent draw
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
