Overview

Ruud High Efficiency air handlers featuring industry standard R-410A refrigerant and energy efficient GE ECM motor for quiet operation and enhanced customer satisfaction

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left - Vertical upflow / horizontal left is the factory configuration
• Supply dimensions: 10-5/16 inches front to back - 23 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-1/2 inches front to back - 22-7/8 inches side to side
• Can be used with air conditioners or heat pumps
• Interface board with dip switches conveniently located in the blower compartment allows precise, field selectable airflow
• Quiet, efficient ECM motor
• The most compact unit design available

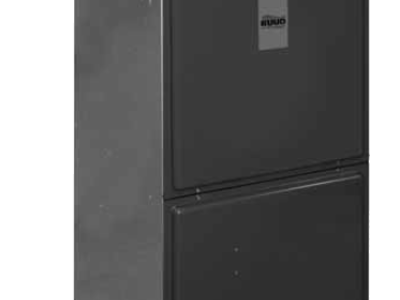

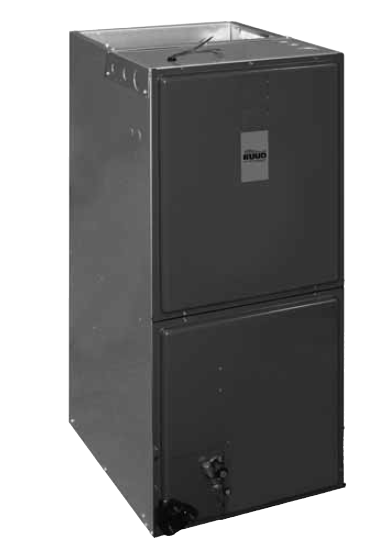

• Attractive, rugged steel wall cabinet with pre-painted exterior
• 1 inch of foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance
• Four leg blower motor mount

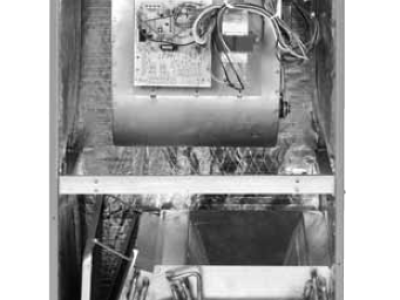

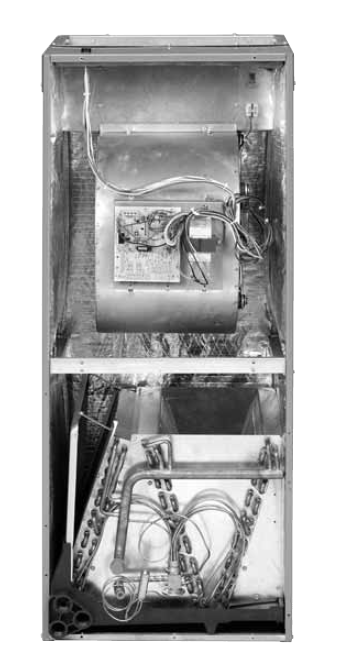

• Slide out blower housing with motor, blower and controls for service and maintenance convenience
• Coils are constructed of aluminum fins bonded to internally grooved copper tubing
• Molded polymer corrosion resistant condensate drain pan
• Provisions for field electrical connections are on both sides or the top of the cabinet
• High voltage wiring connection is inside the cabinet - Low voltage connection is on the outside of the cabinet
• Front refrigerant and drain connections
