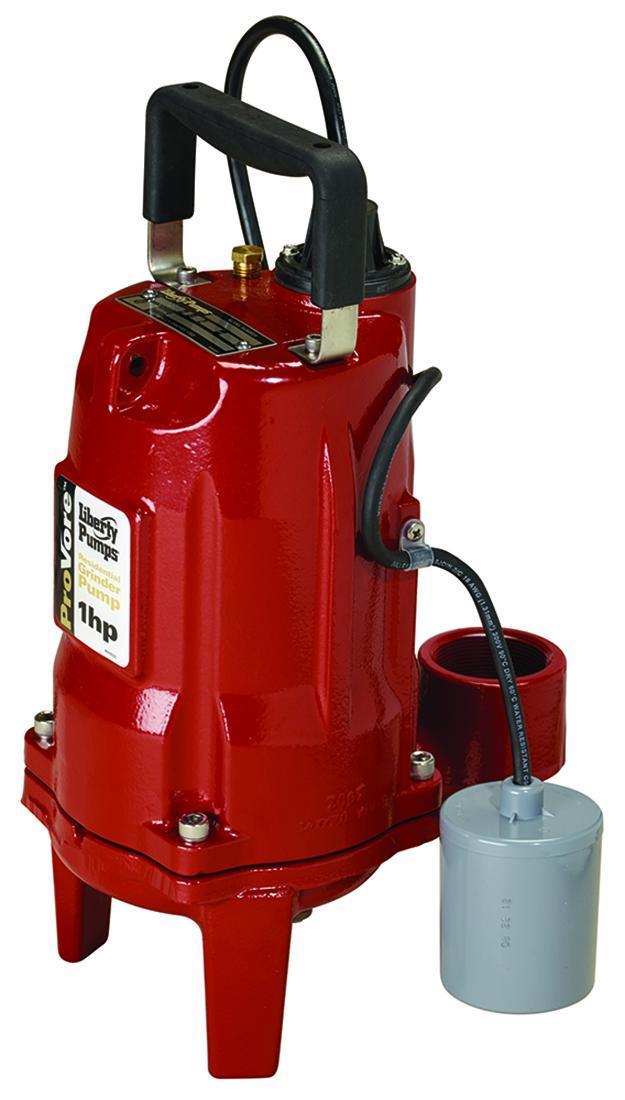

Liberty Pumps® PRG101A PRG, 44 gpm Max Flow, 30 ft Rated Head, Automatic, 50 ft Max Head, 115 VAC, 1 ph Phase
Item SKU - PRG101A by Liberty Pumps
EDP - 1023159
Product Description
Designed for sewage applications. Higher flow rates allow use with 2 in discharge lines. Operates on standard 115 or 230 V 20 A circuits.
Liberty Pumps®, PRG101A, 1-Stage, Series: PRG, 44 gpm Maximum, 30 ft Rated Head, Automatic/Non Automatic: Automatic, 2 in FNPT Outlet, 50 ft Maximum Head, 1 hp, 115 VAC, 12 A Full Load/47.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 10 ft Cord, 1 Service Factor, Cast Iron Impeller, 221 deg F Thermal Overload, Upper Ball/Lower Ball Bearing
Documentation
Liberty Pumps® PRG101A PRG, 44 gpm Max Flow, 30 ft Rated Head, Automatic, 50 ft Max Head, 115 VAC, 1 ph Phase
Item SKU - PRG101A by Liberty Pumps (EDP 1023159)
Product Description
Designed for sewage applications. Higher flow rates allow use with 2 in discharge lines. Operates on standard 115 or 230 V 20 A circuits.
Liberty Pumps®, PRG101A, 1-Stage, Series: PRG, 44 gpm Maximum, 30 ft Rated Head, Automatic/Non Automatic: Automatic, 2 in FNPT Outlet, 50 ft Maximum Head, 1 hp, 115 VAC, 12 A Full Load/47.5 A Locked Rotor, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 10 ft Cord, 1 Service Factor, Cast Iron Impeller, 221 deg F Thermal Overload, Upper Ball/Lower Ball Bearing
