Overview

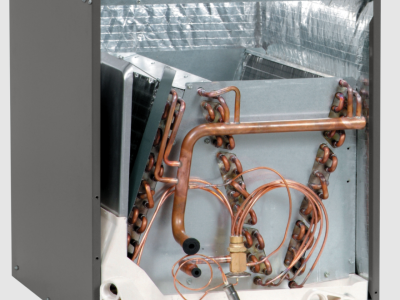

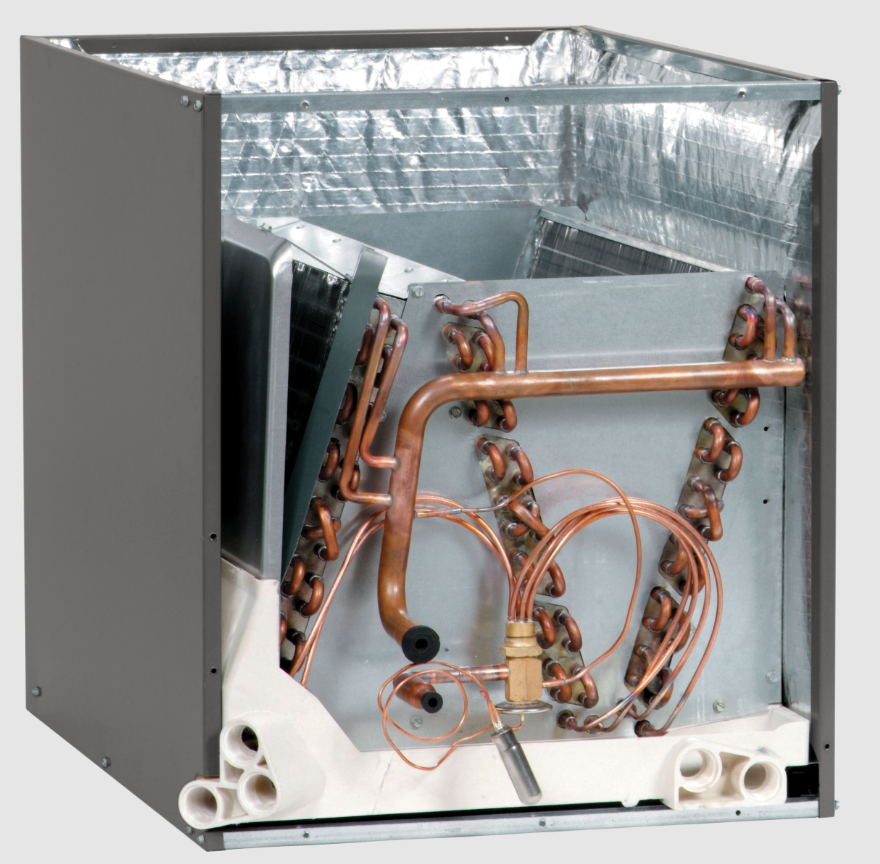

Ruud Indoor Furnace cased coils and replacement uncased coils are designed for use with Ruud outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow.

Features

• This is a multiposition coil that can be used on air conditioning systems or heat pumps
• Plenum dimensions: 19-7/8 inches front to back - 20-1/2 inches side to side - Flanges are provided for field installation
• Can be used on gas or oil furnaces
• Coils are tested at the factory with an extensive refrigerant leak check
• Constructed of aluminum fins bonded to internally grooved copper tubing
• Copper sweat refrigerant connections
• Coils feature two sets of 3/4 inch condensate drain connections for ease of connection
• Unique drain pan design maximizes application flexibility and condensate removal
• Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal set material
• Compatible with Germicidal UV Resistant Light System
• Bi-directional air flow eliminates the need to switch any internal components from horizontal left to right
