QHT SG-7 Biasi Oil Water Boiler with Riello Burner and Hydrolevel 3250TS Control less Circulator
Item SKU - 962223 by P&H Kit
EDP - 962223
Please Login for Pricing
Product Description
Overview

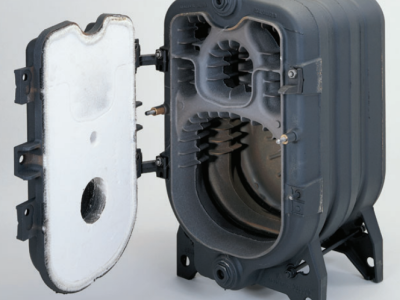

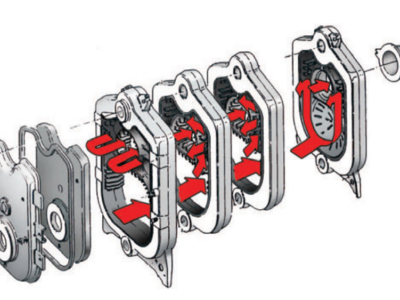

The BIASI SG system is a European, three pass, reverse flame path boiler design. This causes more complete combustion of the fuel increasing AFUE efficiency up to 86.9% while reducing NOX emissions. This BIASI boiler is a "mid-mass" boiler more suitable for radiant or radiator hydronic systems. The SG is constructed from GG20 cast iron and is ASME rated to operate at 58 PSI. The SG also complies with all international standards. Each SG is assembled with a front hinge door that allows easy access for maintenance.
Features
- Hydrostat 3250TS touch panel control with low water cut off
- Reverse flame heat exchanger
- High limit boiler control
- Boiler reset
- 14.9 gallon water content
- 6 inch rear flue
- Full size swing open front burner door
What's Included
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Type
Heat Exchanger Material
BTU Input
BTU Output
Annual Fuel Usage Efficiency (AFUE)
Domestic Hot Water
Vent Type
Building Type
Length (inches)
Width (inches)
Height of Boiler (inches)
Vent Material
Supply
Return
Vent Size (inches)
Approximate Weight (pounds)
