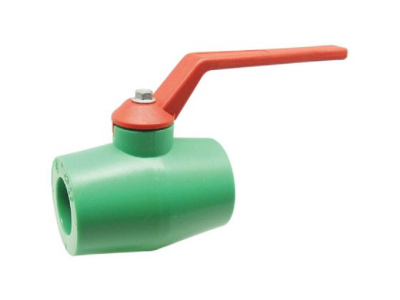

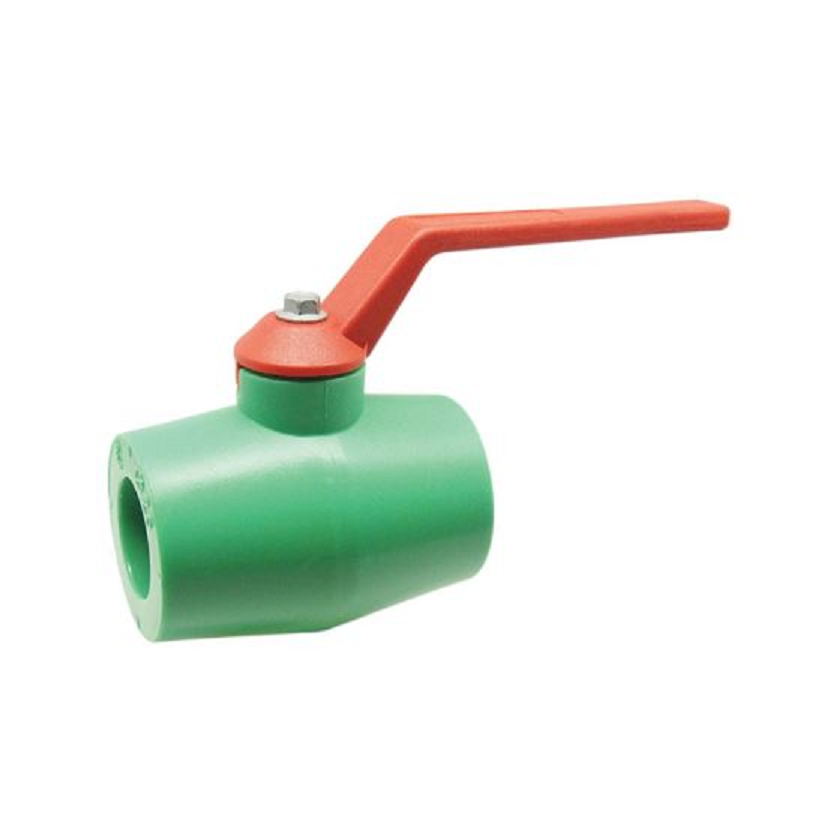

Red and White 1500AB-1-1/2 Polypropylene PP-R80 1-1/2 inch Fusion x 1-1/2 inch Fusion Regular Port Ball Valve
Item SKU - 1500AB 50MM 1-1/2 by Red and White
EDP - 1075640
Please Login for Pricing
Product Description
Red handle - Once piece Polypropylene (PP-R80) body - Blow out proof stem - NBR "O" ring packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Polypropylene
Lead Free
Yes
P1 Size
1-1/2
P1 Connection
Hub
P2 Size
1-1/2
P2 Connection
Hub
WOG Pressure rating
300 PSIG
Body Style
1 piece
Bore
Regular Port
Approval
NSF
Approximate Height (inches)
4.25
Approximate Length (inches)
3.35
Approximate Weight (pounds)
1.14
Approximate Width (inches)
4.29
Red and White 1500AB-1-1/2 Polypropylene PP-R80 1-1/2 inch Fusion x 1-1/2 inch Fusion Regular Port Ball Valve
Item SKU - 1500AB 50MM 1-1/2 by Red and White (EDP 1075640)
Stock / Price Information
Please Login for Pricing
Product Description
Red handle - Once piece Polypropylene (PP-R80) body - Blow out proof stem - NBR "O" ring packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
