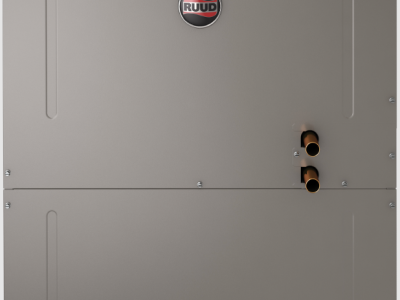

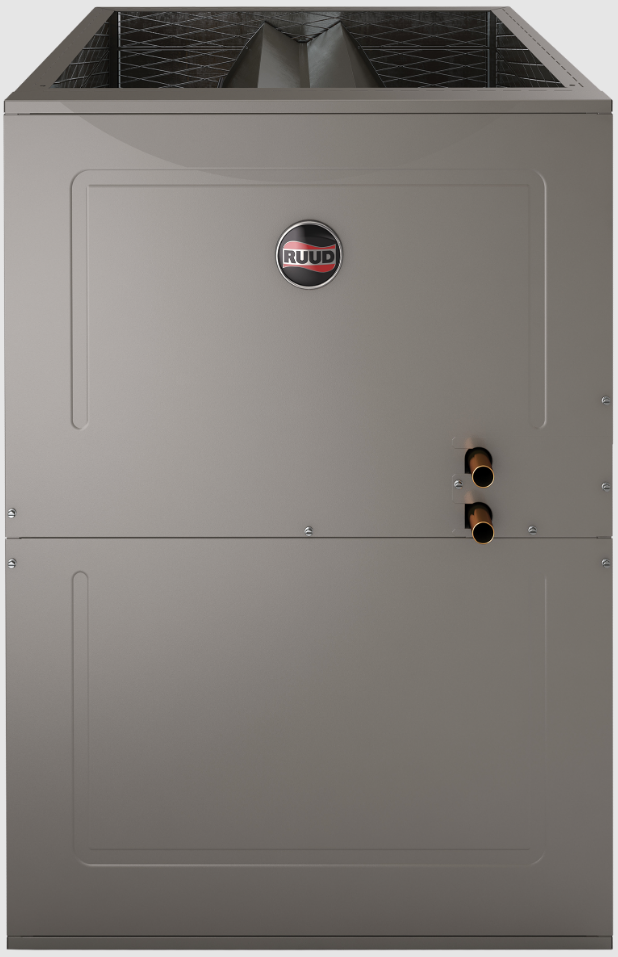

Ruud RW1T-06A3617NAA Multiposition Hydronic Air Handler with Circulator
Item SKU - RW1T06A3617NAA by Rheem / Ruud
EDP - 1078420
Please Login for Pricing
Product Description
Overview

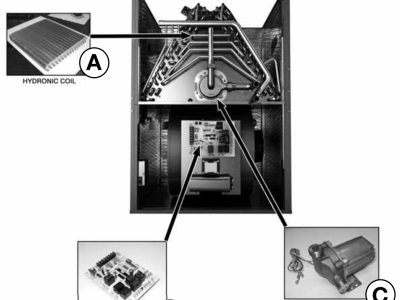

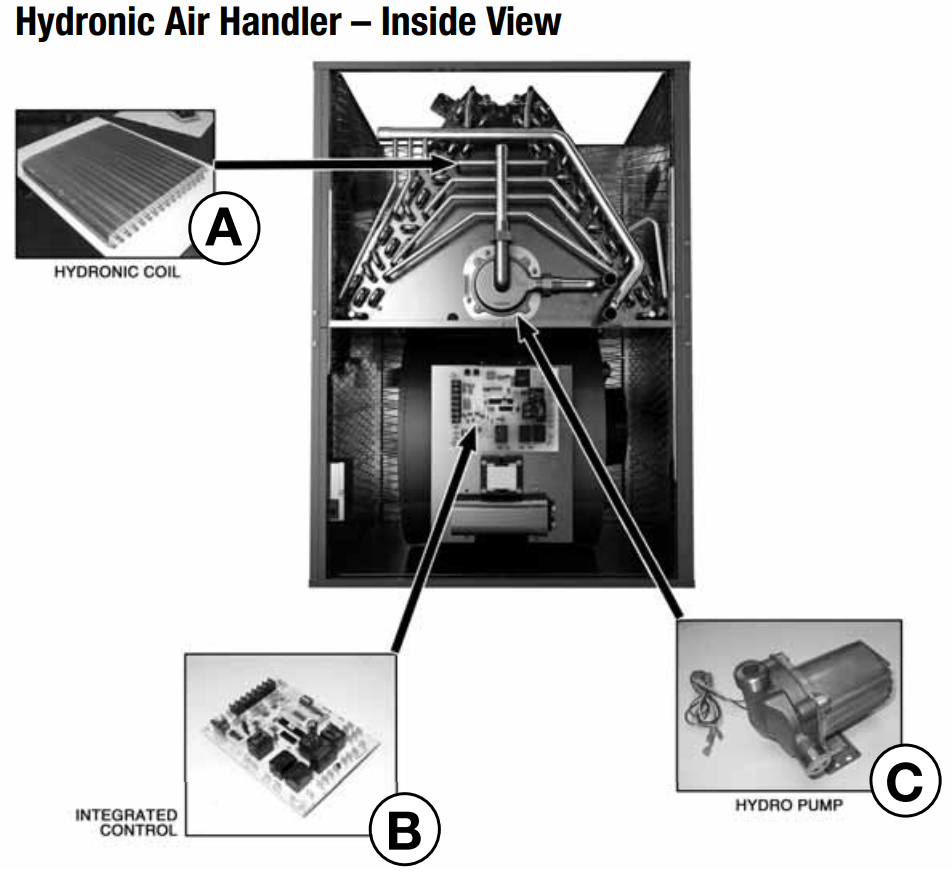

The Ruud RW1T hydronic air handler with an ECM motor, features a hydronic heating coil in place of either electric heating elements or gas fired heat exchangers. When in heating mode, the hydro pump circulates hot water between the tankless water heater (not included) or boiler (not included) and the hydronic coil.
Features
- This unit does not include an air conditioning coil - If air conditioning is required, a 3 ton cased coil must be purchased separately
- 60,000 BTU heating capacity
- This is a multiposition air handler shipped as an upflow unit, but convertible to downflow, horizontal right or horizontal left
- Supply dimensions: 20 inches front to back - 16-1/2 inches side to side - Supply duct flanges are standard
- Return dimensions: 20 inches front to back - 16-1/2 inches side to side
- Low profile design is lighter and easier to handle while also leaving room for an optional cased coil
- Pre-painted galvanized steel cabinet
- Insulated blower compartment
- Integrated control board features diagnostics and manages all operational functions while providing hookups for a humidifier and an electronic air cleaner
- Left or right side electrical connections
- Molded, permanent air filter
- Transformer and control fuse protection
- Standard solid bottom
- Stainless steel circulator pump
- Front 3/4 inch sweat inlet and outlet water connections
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Configuration
Electrical Designation
Heating
Suction Line Size
Liquid Line Size
Motor Type
Length (inches)
Height (inches)
Width (inches)
Weight (pounds)
Building Type
Heating Capacity (BTU's)
