Overview

Features

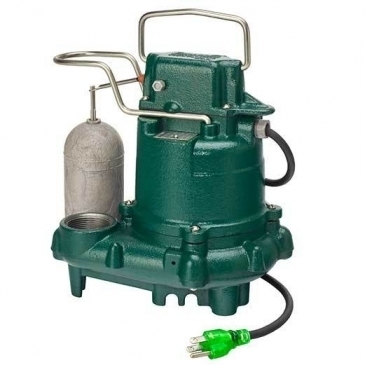

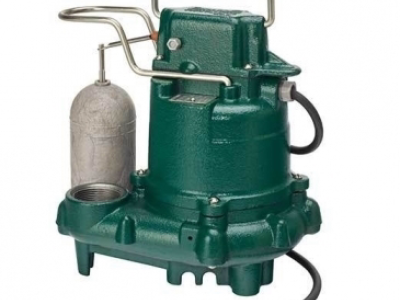

• Float-operated, submersible, 2-pole mechanical switch integrating advanced switch technology
• Corrosion-resistant, powder coated epoxy finish
• All cast iron construction
• Viton outer switch boot
• No sheet metal parts to rust or corrode
• Stainless steel screws, switch arm, guard and handle
• No screens to clog
• Watertight, neoprene square ring between motor and pump housing
• Solid, buoyant, polypropylene float
• Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
• Upper and lower sleeve bearings running in bath of oil
• Entire unit pressure-tested after assembly
• Carbon and ceramic shaft seal
• Maximum temperature for effluent or dewatering: 130 Degrees F (54 Degrees C)
• Passes 1/2" (12 mm) spherical solids
• 1-1/2" NPT discharge
• On point: 7-1/4" (18 cm)
• Off point: 3" (8 cm)
• Major width: 10-3/32" (26.2 cm)
• Major height: 10-1/16" (25.6 cm)
• Watertight and dust-tight
• Permanently oiled bearings
• Cast iron impeller
• 5 year limited warranty
