Overview

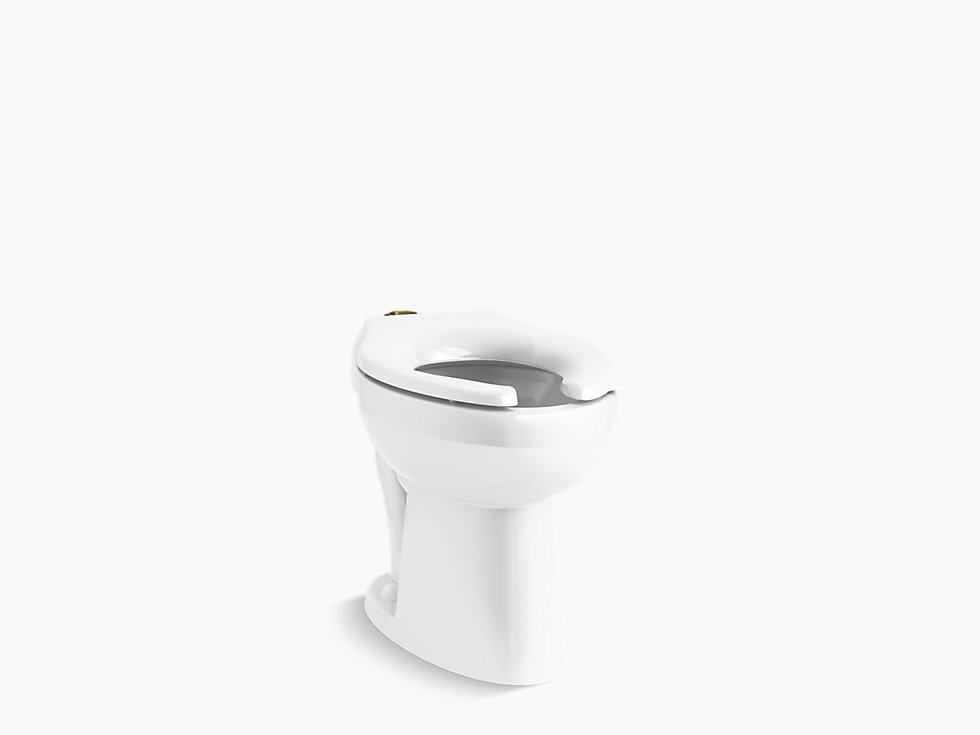

The Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 16-7/8" to the top of the rim, the Highcliff Ultra meets both ADA and CSA height requirements. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra is listed from 1.1 to1.6 gpf but can operate at 1.0 gpf. It performs well at every flush interval, making it uniquely effective with dual flush valves, and has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.

Features

• Elongated bowl, ADA compliant.
• 1-1/2" top spud.
• Trap passageway 2-1/8".
• 10" x 7" water surface size.
• 1.1 to 1.6 gpf (gallons per flush) range (1.1, 1.28 and 1.6 gpf).
• Also available with antimicrobial finish, K-96057-SS.
• Replaces Kohler Highcrest, Highcliff, and Highline flushometer models.

Material

• Vitreous china.

Technology

• Designed to outperform competitors in bowl cleanliness and plug resistance.
• Maximum waste removal, excellent bowl rinse, and reduced splashing.
• Maximum waste removal, excellent bowl rinse, and reduced splashing.
• Engineered to flush effectively in buildings with low supply pressure and flow. Tested to 25 psi and 19 gpm.
• Maximum drain line carry at all flush volumes per ASME Standard.

Installation

• 10" or 12" rough-in.
• ADA-compliant bowl height.
• Seat not included.

Water Conservation & Rebates

• WaterSense(R) compliant when used with a 1.1 or 1.28 gpf WaterSense flushometer.
• This product can help a building earn Water Efficiency points in the LEED(R) Green Building Rating System.
• This product meets water savings requirements for California Energy Commission (CEC), CALGreen, and Colorado SB 14-103.
