Overview

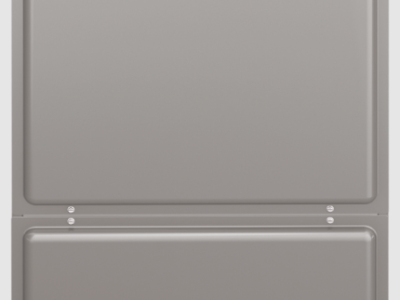

The Ruud RH2V High Efficiency Air Handler is performance measured across 13 active monitoring points that deliver sustained comfort and maximum efficiency. Reducing your monthly energy bills is easier than ever because the Ruud RH2V Air Handler features a high efficiency, variable speed blower motor that is recognized by the industry for dependable energy savings. Solid construction ensures quiet operation and provides quality assurance

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left
• Can be used with air conditioning
• Two stage air flow
• Supply dimensions: 10-5/16 inches front to back - 23 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-3/4 inches front to back - 22-7/8 inches side to side
• The most compact unit design available
• Pre-painted rugged steel cabinet
• 1 inch foil faced insulation mechanically retained in blower cabinet
• Four leg rubber insulated blower motor

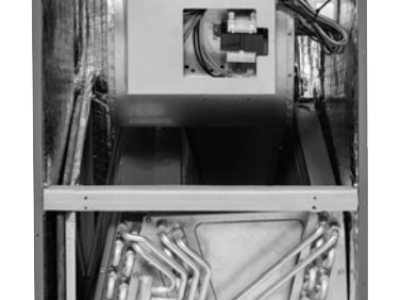

• Slide out blower housing with motor, blower and controls for service and maintenance convenience
• Top, left or right side electrical connections
• Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing
• Molded polymer, corrosion resistant condensate drain pan
• Coils utilize chatleff metering devices
• High voltage connections are on the inside of the cabinet - Low voltage connections are on the outside of the cabinet
• Front refrigerant and drain connections
