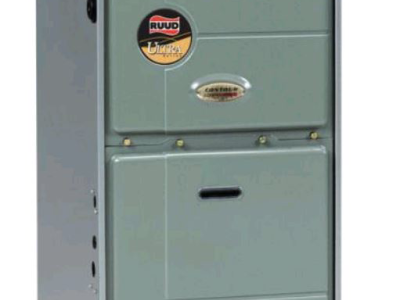

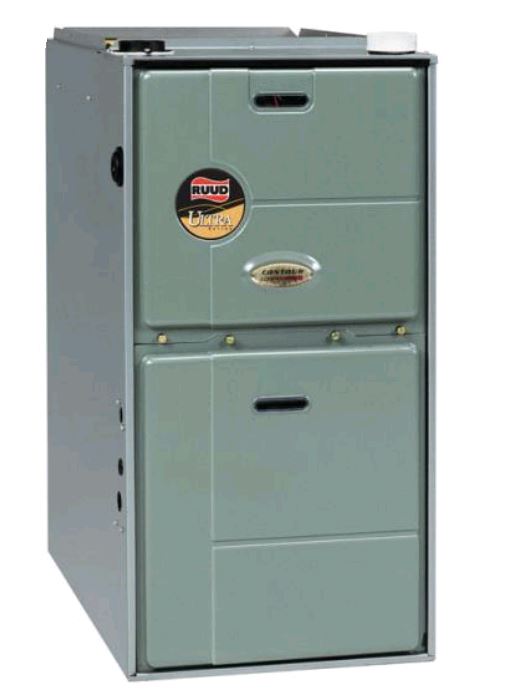

* 72,000 BTU MAX OUTPUT - NAT GAS

75,000 BTU MAX INPUT - 72,000 BTU MAX OUTPUT - 94.0% AFUE EFFICIENCY

40 TO 70 DEGREE AIR TEMPERATURE RISE

BLOWER: 11" DIAMETER - 7" LONG - 1/2 HP

SIDE FILTER SIZE: 153/4" X 25"

CAN BE USED WITH 11/2, 2, 21/2, OR 3 TON COOLING UNIT

THIS IS AN UPFLOW FURNACE ONLY

ELECTRONIC IGNITION - MODULATING GAS VALVE

MUST BE INSTALLED AS A 2 PIPE (SEALED COMBUSTION)

34" HIGH - 3" FLUE

WEIGHS 133 LBS

LIMITED LIFETIME WARRANTY ON HEAT EXCHANGER - 5 YEAR LIMITED WARRANTY ON

INTEGRATED FURNACE CONTROL AND DRAFT INDUCER - 5 YEAR PARTS WARRANTY

REQUIRES THERMOSTAT 41 24312 04 OUR NUMBER 669213

SEE EDP# 810623 FOR FURTHER DETAILS
