Overview

The Ruud RH1P Air Handler provides enduring comfort and energy savings. It's sturdy design, quiet operation and humidity control features enhance the air quality in your home, delivering comfort you can count on

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left
• Supply dimensions: 10-5/16 inches front to back - 16 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-3/4 inches front to back - 15-7/8 inches side to side
• Can be used with air conditioners or heat pumps
• The most compact unit design available

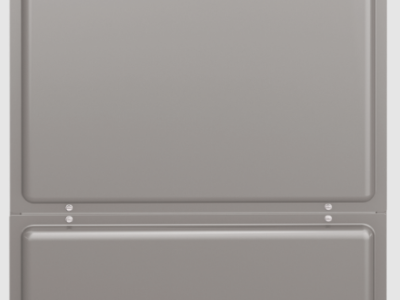

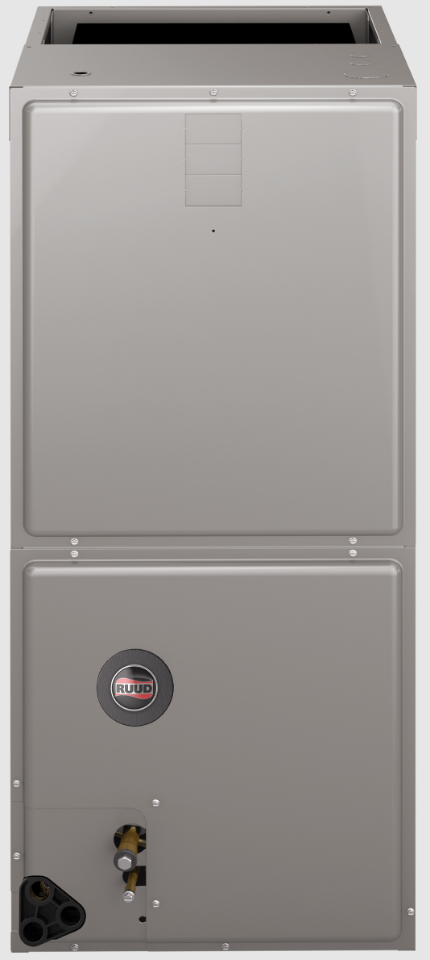

• Attractive, rugged steel wall cabinet with pre-painted exterior
• 1 inch of foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance
• Four leg motor mount

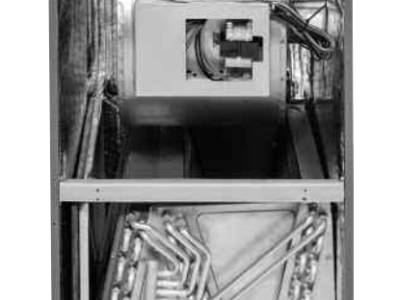

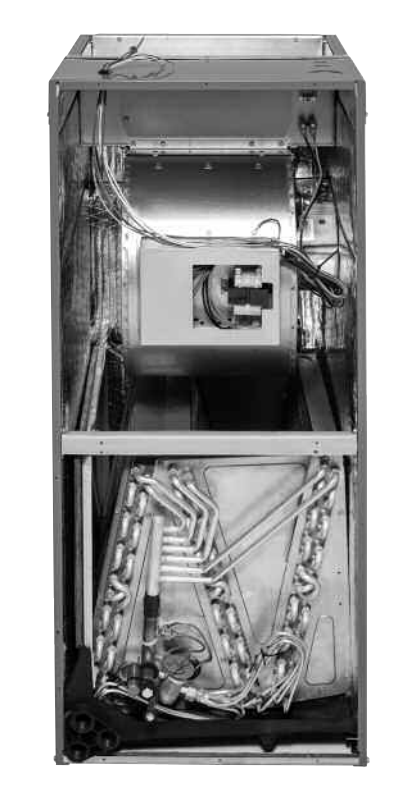

• Slide out blower housing with motor, blower and controls for service and maintenance convenience
• Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing
• Molded polymer corrosion resistant condensate drain pan
• Expansion valve on indoor coil provides for operation with air conditioning or heat pump using the same coil
• Coils have sweat refrigerant connections
• Coils utilize chatleff metering device connections
• High voltage connections are on the inside of the cabinet - Low voltage connections are on the outside of the cabinet
• Front refrigerant and drain connections
