This Package Includes:

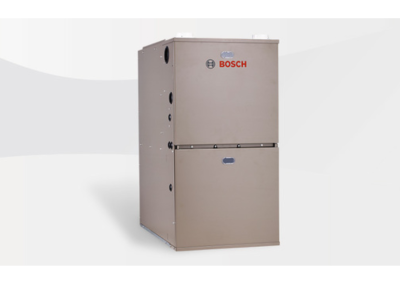

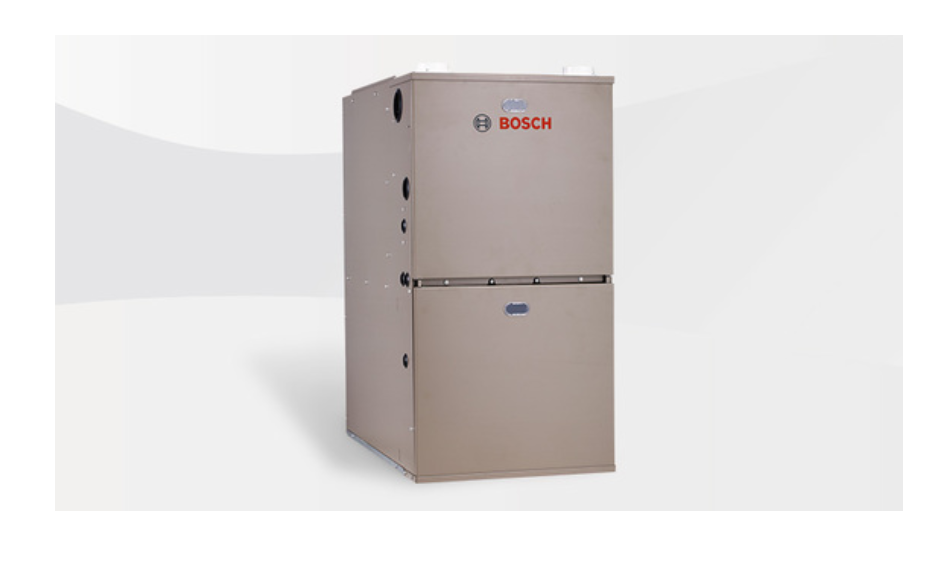

• (1) - BGH96-M060-B3B Natural Gas Multiposition Warm Air Furnace

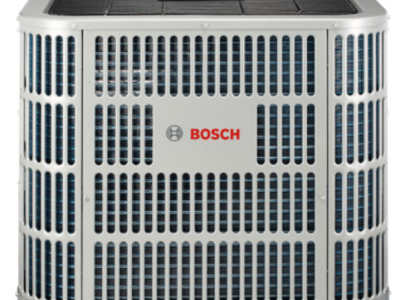

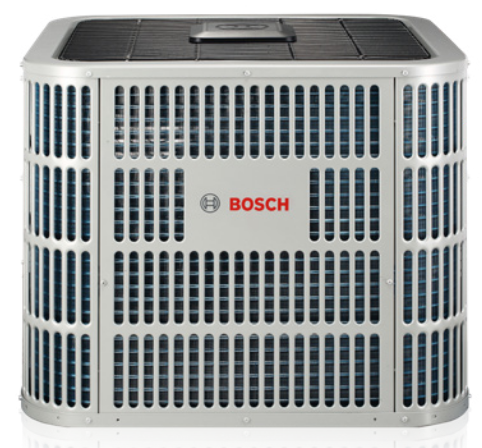

• (1) - BOVA-36HDN1-M20G IDS Premium 3 Ton 20 Seer Heat Pump Condenser
• (1) - BMAC-3036-ANTD IDS 3 Ton Multiposition Cased Furnace Coil

Overview

With 96% AFUE heating efficiency, the Bosch BGH96 furnace is the perfect solution to efficiently heat your home. The multipoise design makes it even easier to replace your existing equipment or install in your new home. You can also integrate the Bosch BGH96 furnace with Bosch's IDS condenser outdoor unit and cased coil for a complete and highly efficient heating and cooling system. Between ease of installation, integration and troubleshooting, this furnace offers convenience and peace of mind.

The Bosch Inverter Ducted Split (IDS) Premium Condenser provides supremely efficient comfort by adjusting compressor capacity rather than a simple on/off control like other units, thereby reducing operating costs and saving you money. With enhanced humidity control and higher efficiency, the performance of the Bosch IDS Family provides you with maximum comfort with minimum energy usage! Our system's intelligent features work in tandem with your thermostat to automatically adjust to your preferences, while integrated sound dampening features keep the units nice and quiet.

Bosch Cased "A" Coil units (BMAC) deliver unmatched performance and efficiency levels. This unit is designed to pair easily with Bosch ASHP Condensing Section (BOVA2.0), Bosch 96% AFUE Furnace (BGH96) or Bosch WSHP Condensing Section (SM Split). Built for simple installation across a number of applications (horizontal, downflow or vertical), the Bosch Cased Coil will provide comfort and peace of mind.

BGH Furnace Features

• Up to 96% AFUE heating efficiency and ENERGY STAR rated
• Suitable for up to 3 tons of cooling
• 17-1/2 inch cabinet width
• 3 way multipoise design; can be installed in upflow right, upflow left and horizontal applications
• Natural gas to LP conversion kit is included
• 2 stage gas valve
• x13 ECM blower motor for quiet and efficient operation
• Hot surface ignition
• Durable aluminized steel tubular heat exchanger and stainless steel secondary heat exchanger
• Low profile cabinet allows for installation in tight spaces
• Right hand or left hand gas and electric connections
• Painted galvanized steel cabinet with anti-rust coating
• LED fault diagnostics for quick and easy service calls

Heat Pump Condenser Features

• Intelligent control features help adjust the output capacity, allowing the unit to keep the temperature and humidity at your desired levels without fluctuation
• The high efficiency variable capacity inverter compressor can adjust to any speed between 36% and 130% (in1% increments) to perfectly cool and heat your home using minimal energy for maximum comfort
• The air coil design provides exceptional heat transfer and low air resistance
• Direct drive fan blades provide vortex suppresion to reduce sound of airflow exiting the condenser giving sound levels as low as 56 dB
• Condensers include an electronic expansion valve (EEV) to ensure proper refrigerant flow during all conditions
• Standard crankcase heater
• Compressor liquid return protection - Compressor high or low compression ratio protection - Compressor high temperature protection - High / low voltage protection and over current protection - IPM and electronic control board high temperature protection

Furnace Coil Features

• 14-1/2 inch cabinet width
• 2-1/2 or 3 ton cooling
• Foil faced insulation for easy cleaning
• Formicary corrosion resistant all aluminum coil
• Factory installed TXV valve
• UVC tested plastic drain pan reduces mold, bacteria and airborne pollutants
• Slide out coil offers easy maintenance, and can be converted for uncased coil applications
• Can be used in vertical, downflow and horizontal applications
