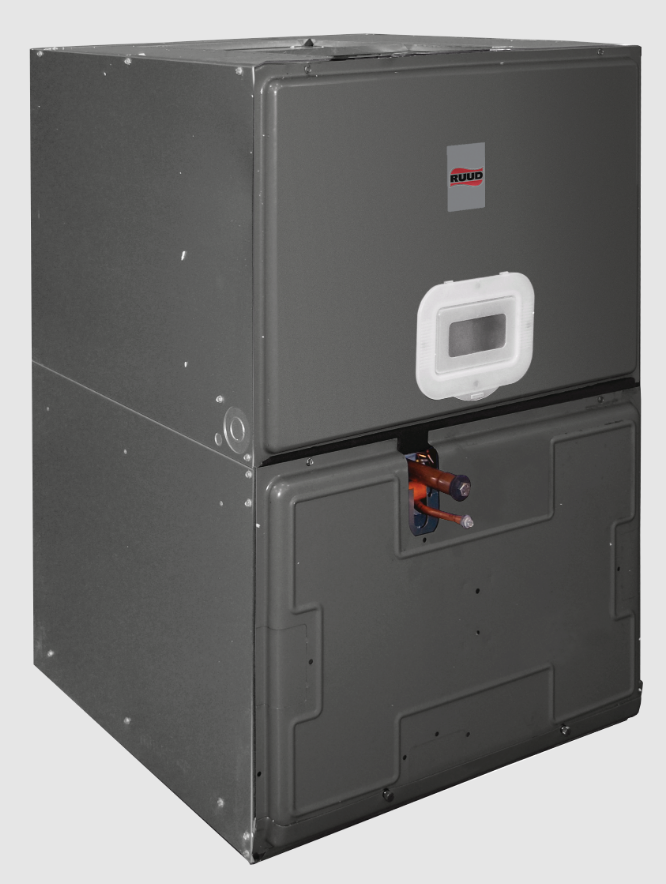

Overview

Ruud High Efficiency air handlers featuring industry standard R-410A refrigerant now also come with GE's new X-13 motor, which provides enhanced SEER performance with most Ruud outdoor units.

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left
• Supply dimensions: 18 inches front to back - 9-7/16 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-3/4 inches front to back - 20 inches side to side - Return duct flanges are standard
• Can be used with air conditioners
• The most compact unit design available
• Attractive, rugged steel wall cabinet with pre-painted exterior
• 1 inch of foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance
• Four leg rubber insulated wire motor mount
• Slide out blower housing with motor, blower, heaters and controls for service and maintenance convenience
• Coils are constructed of aluminum fins bonded to tinned copper tubing
• Molded polymer corrosion resistant condensate drain pan
• High voltage and low voltage connections are on the inside of the cabinet with provisions for connections on each side
• Front refrigerant and drain connections
• Circuit breaker is included with this unit
• Durable framed, cleanable air filter provided as standard in the unit filter rack
