26.5 SEER - 13 HSPF

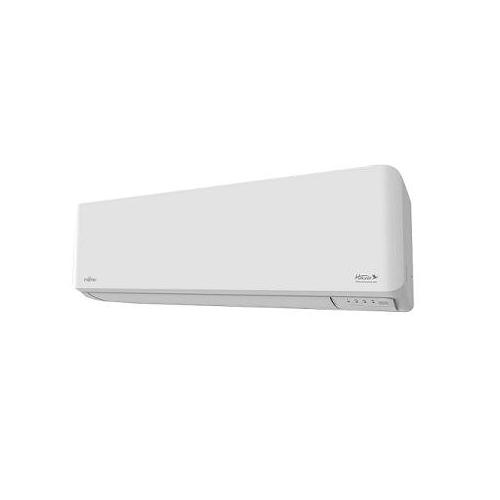

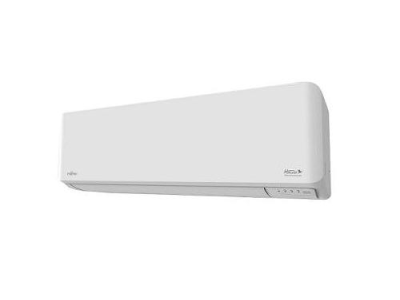

FUJITSU ASUG09LMAS INDOOR WALL UNIT

ODU# AOUG09LMAS1 SYSTEM# 09LMAS1

SEER 26.5, EER 14.3, HSPF 13, COP KW/KW 4.19 BTU/HW 14.30

COOLING- F(C) 14 TO 115 (-10 TO 46) HEATING- 5 TO 75 (-15 TO 24)

COOLING RATED 9000 MIN. 3400 MAX. 10900

HEATING RATED 12000 MIN. 2800 MAX. 15000

LINESET- 1/4 - 3/8 FLARED CONNECTION PRE-CHARGE 49'

MIN. LENGTH- 10' MAX. LENGTH- 66' MAX. HEIGHT DIFF. 49'

DIMENSIONS- IDU= (HxWxD) 10-5/8 X 32-13-16 X 8-3/4 WEIGHT- 22LB

ODU= (HxWxD) 21-5/16 X 31-7/16 X 11-7/16 WEIGHT- 68LB

REFRIGERANT- R410A ELECTRICAL- 208/230V/1/60HZ MAX. BREAKER 15A

7 Year Compressor, 5 Year Parts out-of-the-box Warranty

10 Year Compressor, 10 Year Parts Warranty when registered within 60 days

of installation in a residence

12 Year Compressor, 12 Year Parts Warranty when registered within 60 days

of installation in a residence, and installed by a Fujitsu Elite contractor

ACCESSORIES:

UTY-TTRX 3rd party thermostat converter

UTY-TWRXZ2 interface kit

UTY-RNRUZ4 wired remote control (touch panel)

UTY-RSRY simple remote control

UTY-TFSXF1 wifi interface module

UTY-XWZXZ5 dry contact wire kit

----------------------------------------01/31/22 NSOARES
