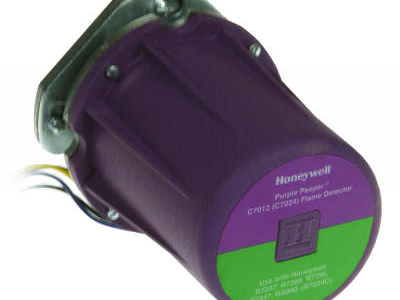

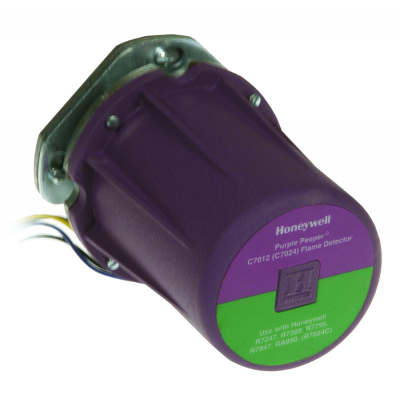

Old Number C7061A-1020

For use with R7861 Dynamic Self Check Amplifier

Oscillating shutter interrupts ultraviolet radiation reaching the UV sensor to provide the UV sensor tube checking function.

Can be mounted horizontally, vertically or at any angle in between.

The detector requires faceplate alignment and has integral locating reference points to assure proper operation of the shutter mechanism.

Field replaceable ultraviolet sensing tube and quartz viewing window.

Models with threaded conduit fitting and color-coded leadwires allow rapid electrical installation

Two detectors can be wired in parallel to reduce nuisance shutdowns in difficult flame sighting applications.

Protective heat block built into mounting flange - 120 or 230 volt flame sensor
