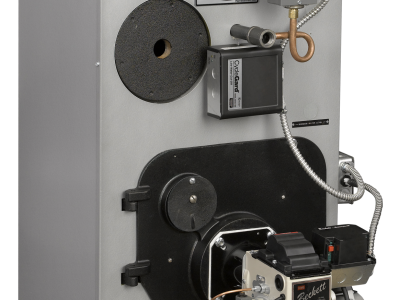

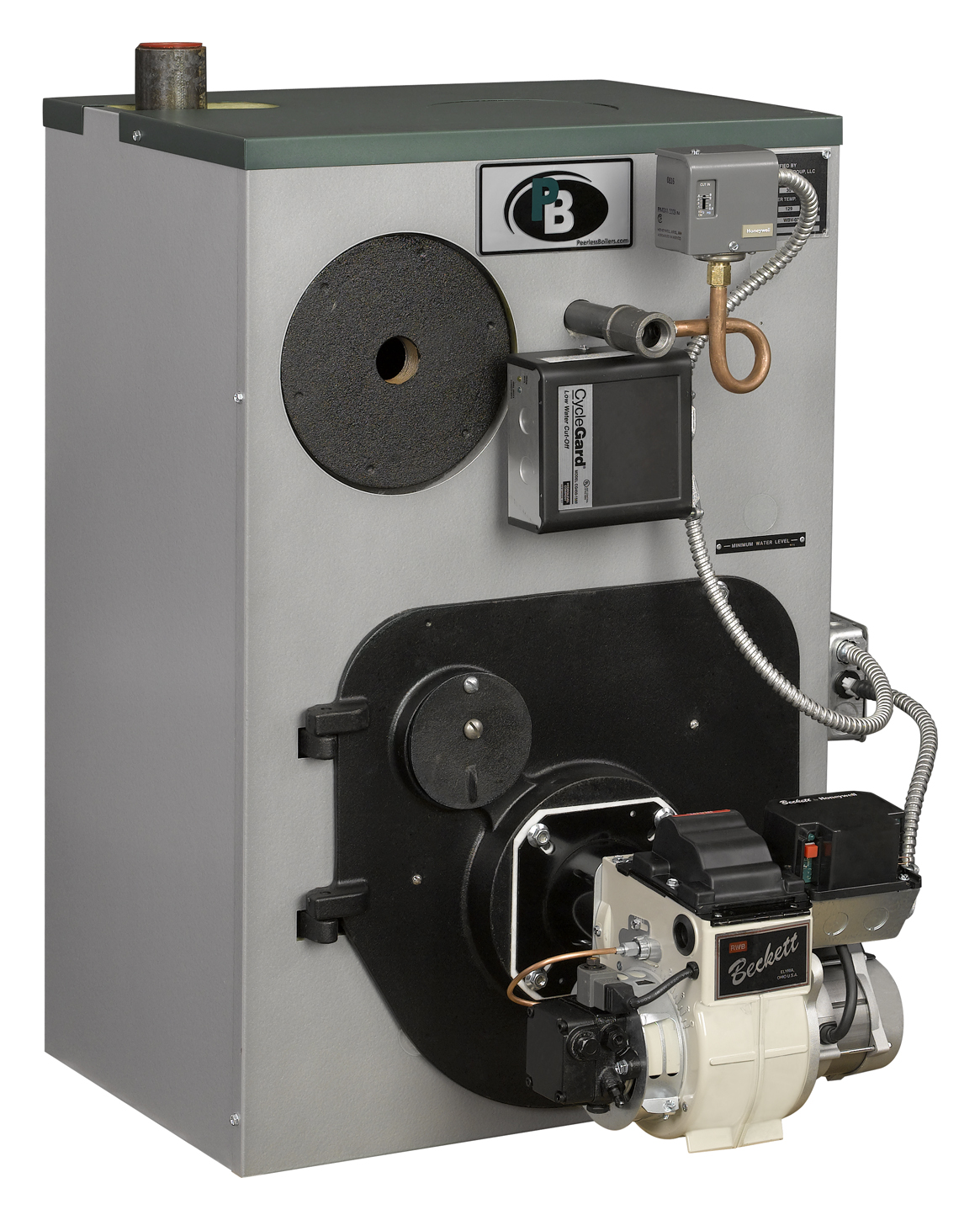

Peerless Boilers 1404008 WBV-04-SPT Oil Steam Boiler with Tankless Coil, Beckett AFG Burner and Probe Type Low Water Cut Off
Item SKU - WBV-04-SPT-BECKETT by Peerless Boilers
EDP - 770058
Please Login for Pricing
Product Description
Features
- If boiler is fired at 1.50 gallons per hour: 210,000 BTU input 179,000 BTU heating capacity - 84.3% AFUE - Tankless coil
- If boiler is fired at 1.25 gallons per hour: 175,000 BTU input - 151,000 BTU heating capacity - 85.4% AFUE - Beckett AFG oil burner
- Cast iron sections - Deluxe Classic powder coated steel jacket - Probe type Low Water Cut Off - Pressure control
- Full plate swing out burner door - Top or Rear flue outlet - Top cleanout - Built in air elimination baffle
- Gauge glass and gauge cocks
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Oil
Type
Steam
Heat Exchanger Material
Cast Iron
BTU Input
210000
BTU Output
179000
Annual Fuel Usage Efficiency (AFUE)
84.3
Domestic Hot Water
Yes
Vent Type
Atmospheric Vent
Building Type
Residential
Length (inches)
33.50
Width (inches)
22.125
Height of Boiler (inches)
35
Vent Material
Galvanized
All Fuel
Supply
Male Iron Pipe 2
Return
Female Iron Pipe 1 1/4
Square Feet of Steam
558
Vent Size (inches)
6
Approximate Weight (pounds)
719
Peerless Boilers 1404008 WBV-04-SPT Oil Steam Boiler with Tankless Coil, Beckett AFG Burner and Probe Type Low Water Cut Off
Item SKU - WBV-04-SPT-BECKETT by Peerless Boilers (EDP 770058)
Stock / Price Information
Please Login for Pricing
Product Description
Features
- If boiler is fired at 1.50 gallons per hour: 210,000 BTU input 179,000 BTU heating capacity - 84.3% AFUE - Tankless coil
- If boiler is fired at 1.25 gallons per hour: 175,000 BTU input - 151,000 BTU heating capacity - 85.4% AFUE - Beckett AFG oil burner
- Cast iron sections - Deluxe Classic powder coated steel jacket - Probe type Low Water Cut Off - Pressure control
- Full plate swing out burner door - Top or Rear flue outlet - Top cleanout - Built in air elimination baffle
- Gauge glass and gauge cocks
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
