Overview

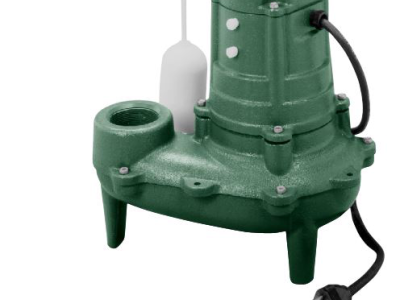

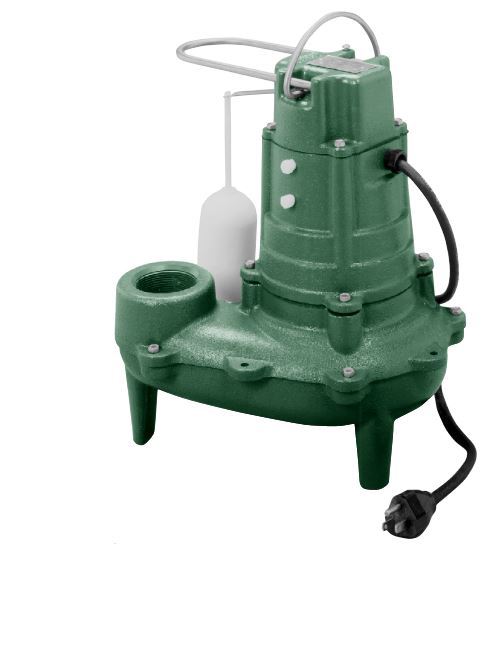

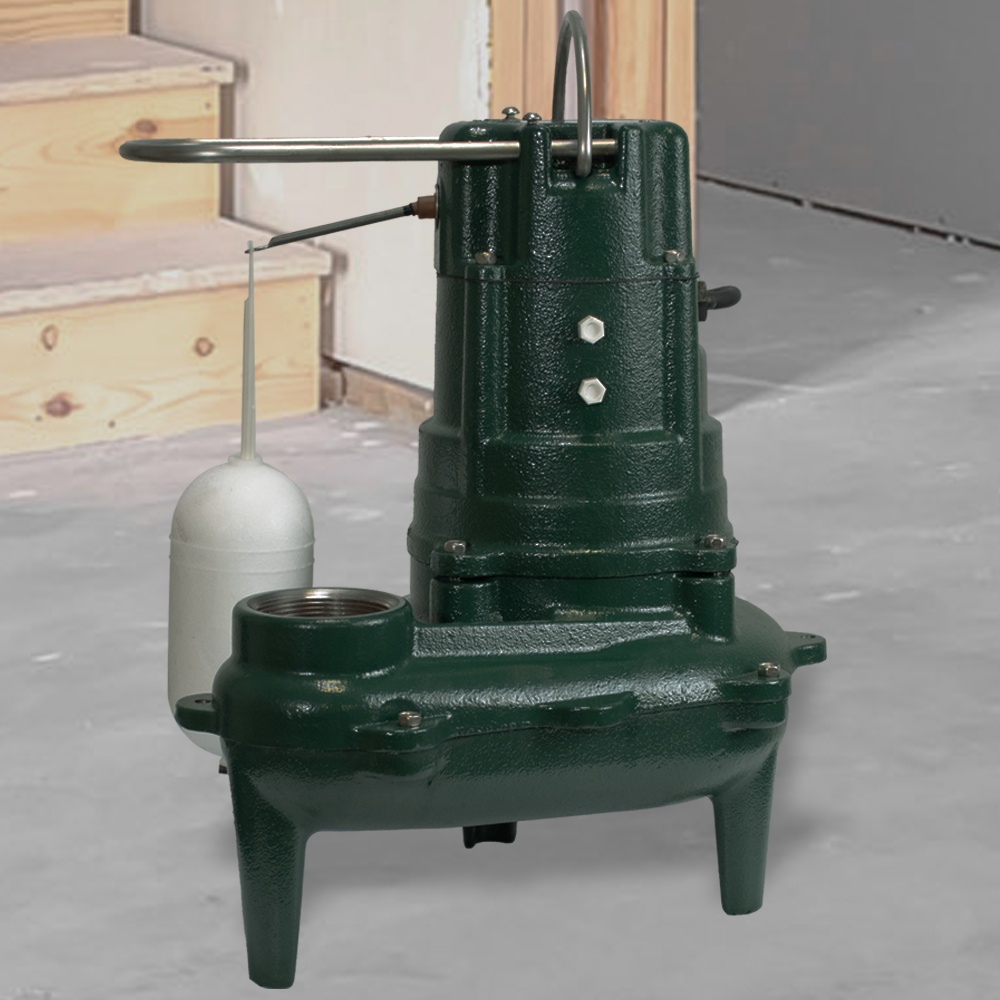

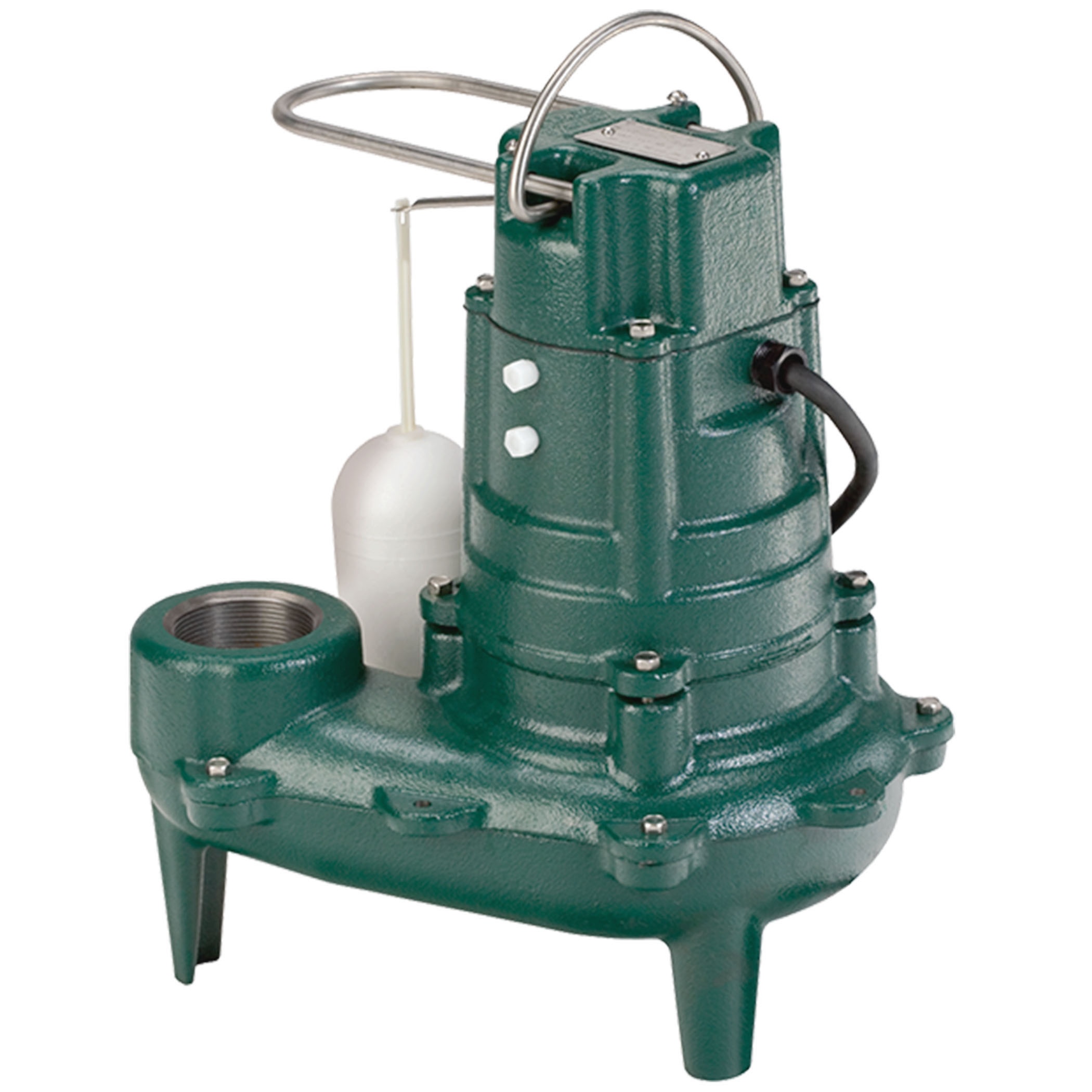

The "Waste-Mate" series of submersible pumps is designed for use in residential or light commercial dewatering and wastewater applications and can be used to transfer groundwater, effluent or raw sewage. The innovative vortex impeller design reduces the risk of clogging and allows each pump to pass 2" (50 mm) spherical solids. These durable cast iron pumps include a powder coated epoxy finish to prevent corrosion an dare designed to provide great heat dissipation from the motor, ensuring a long service life. As with every Zoeller pump, each one is 100% pressure-tested, submerged and run to ensure quality and reliability for years of trouble-free performance!

Features

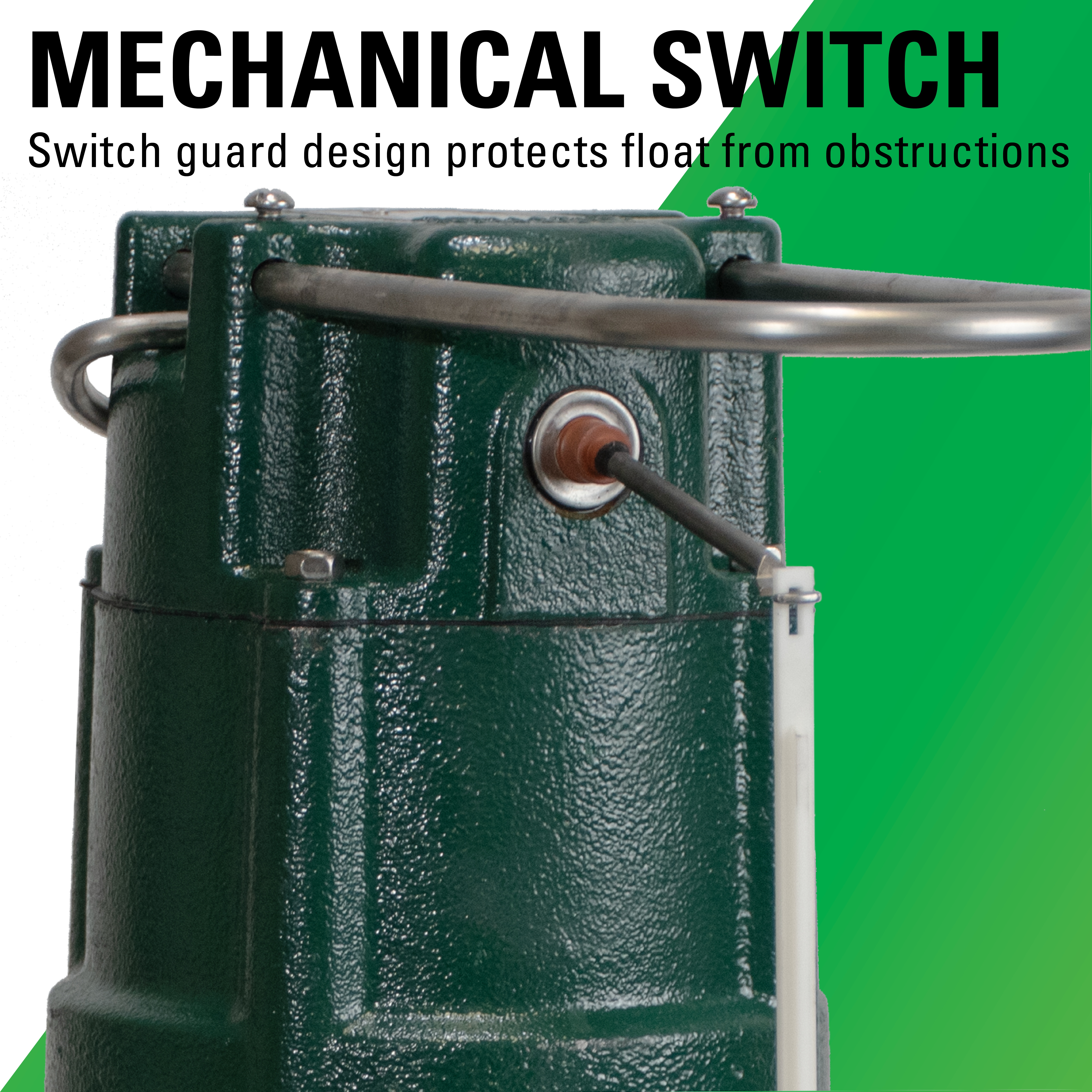

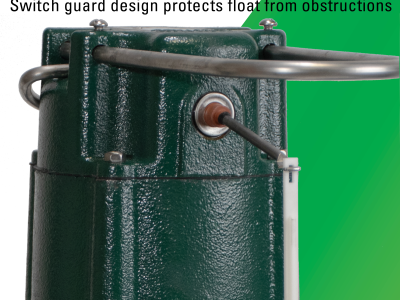

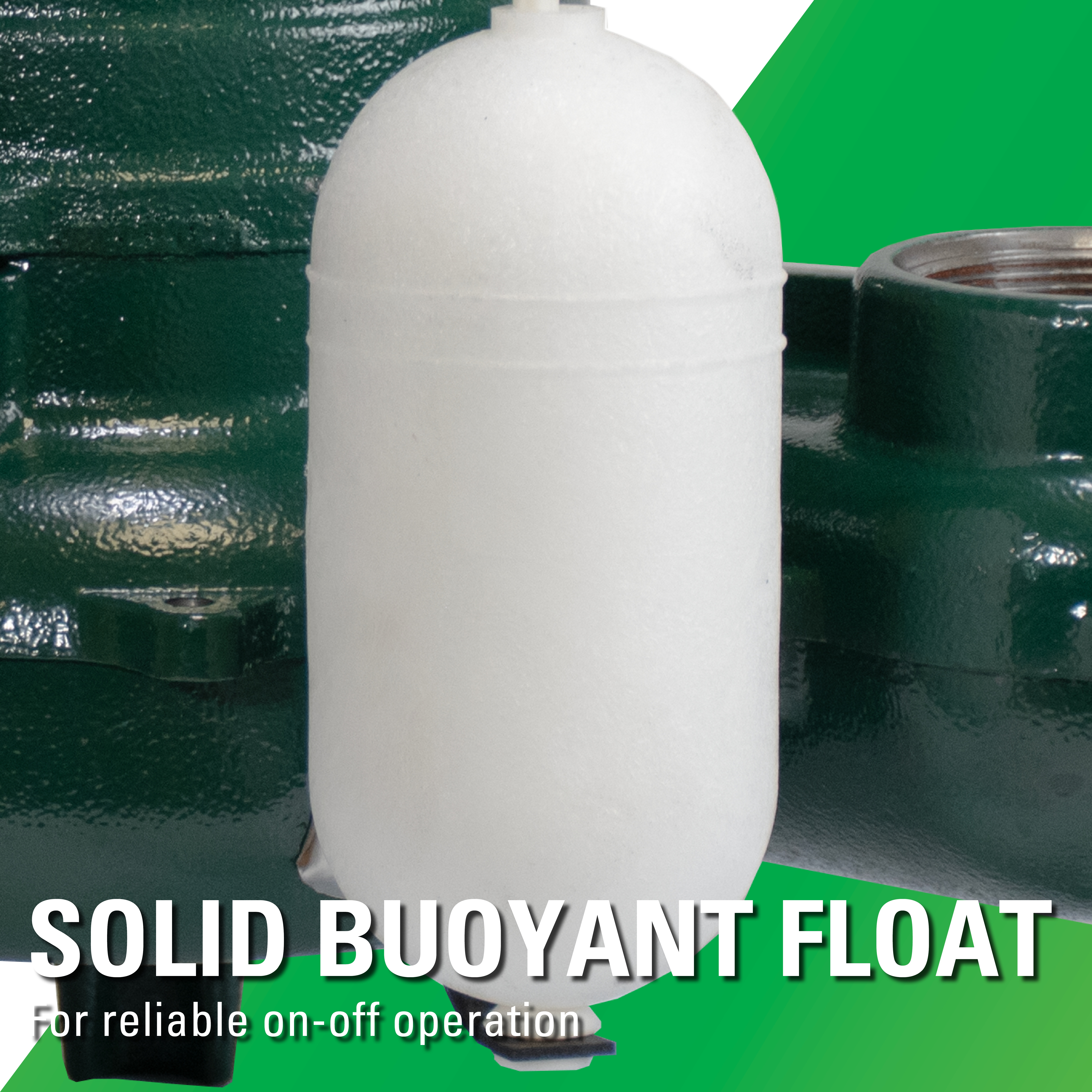

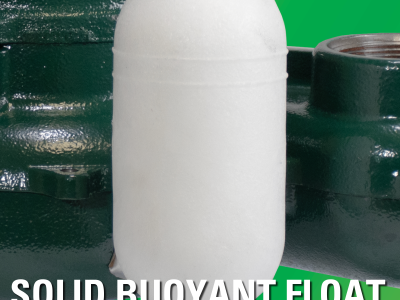

• Float-operated, 2-pole mechanical switch

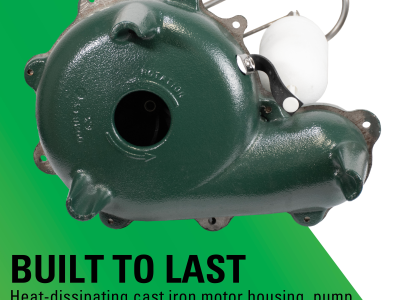

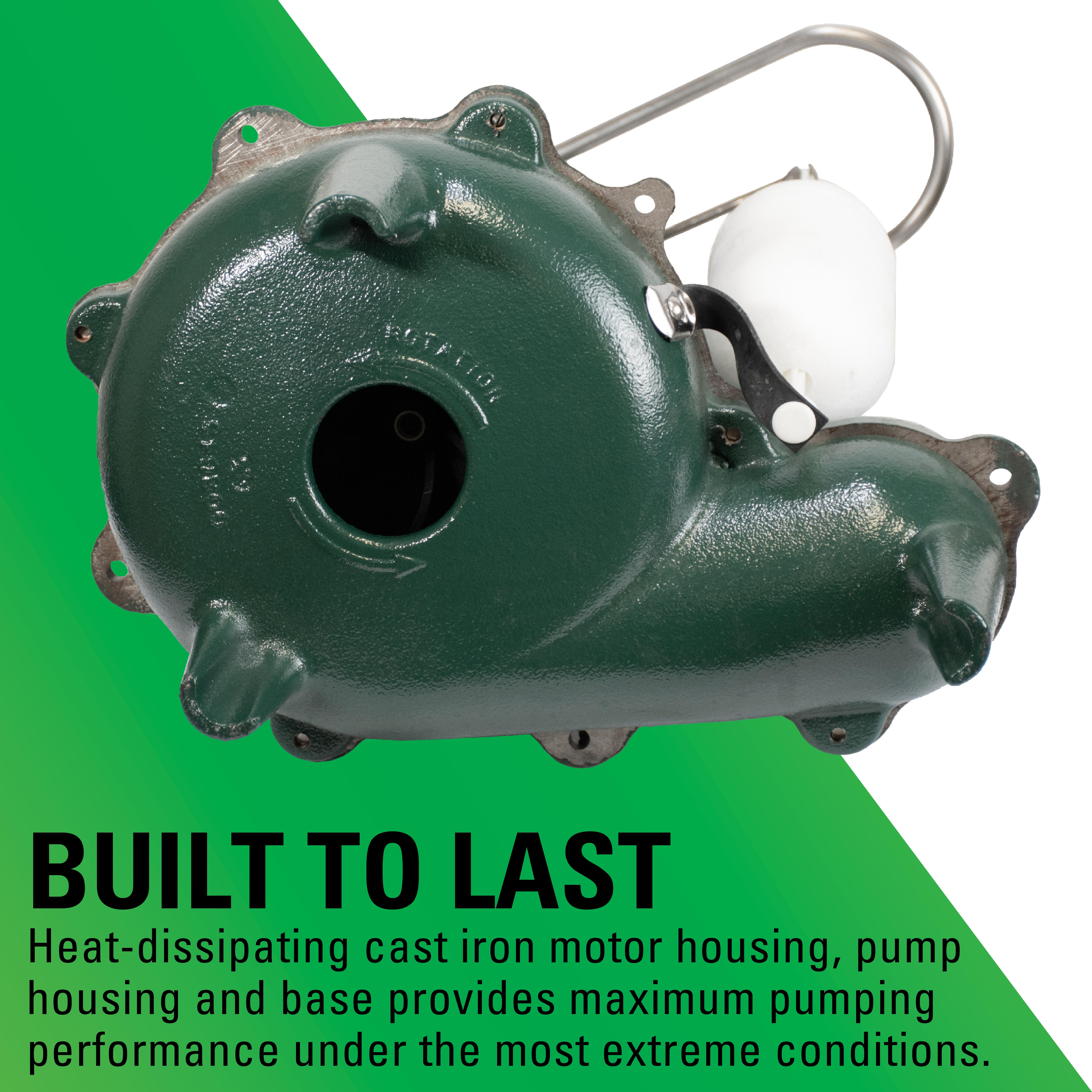

• Durable cast construction, ASTM Class 25 cast iron switch case and pump housing

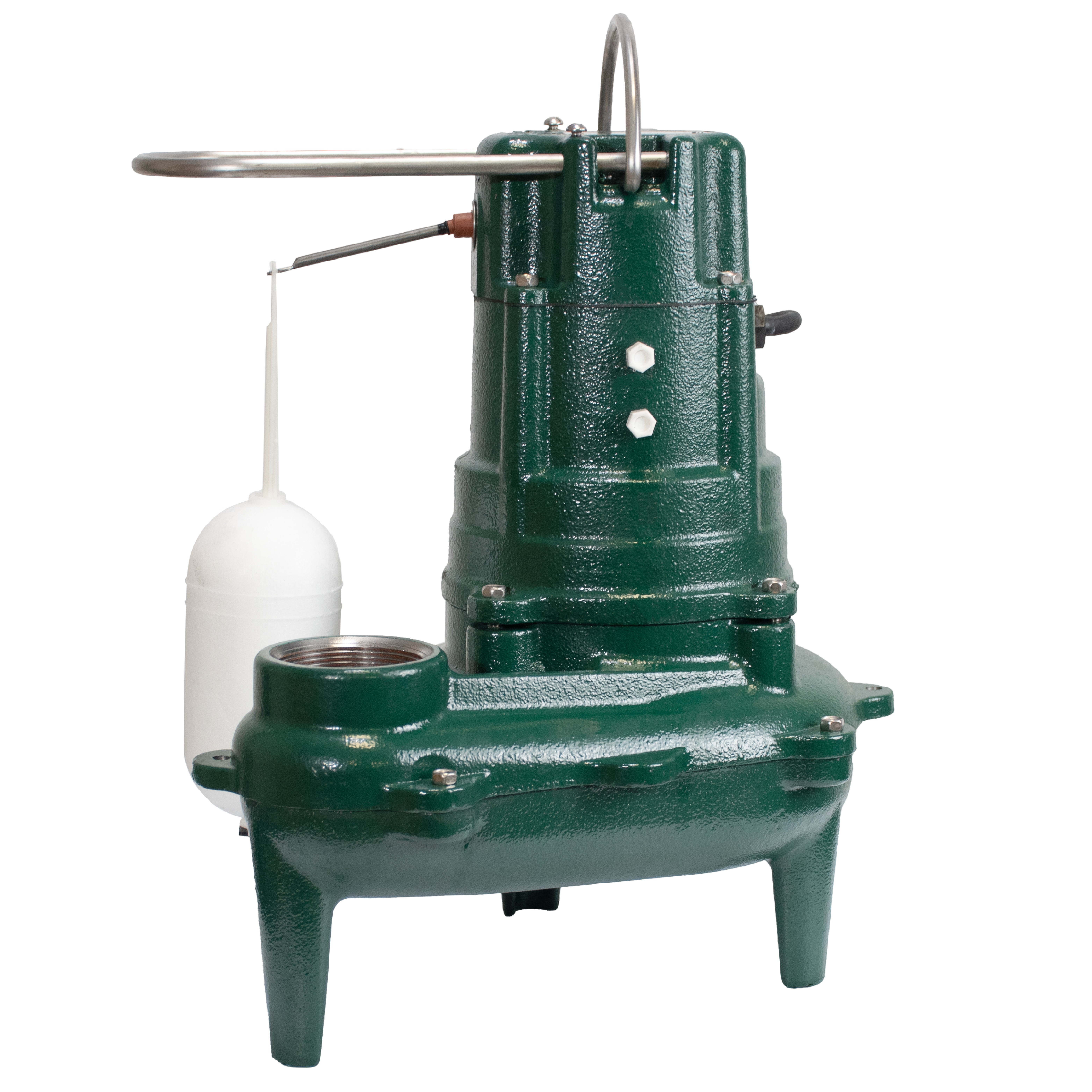

• Cast iron base on models 267 and 268
• Non-clogging vortex impeller design. Engineered plastic impeller with metal inserts (1 Ph). Model 267 available with cast iron impeller (standard on 3 Ph models).
• Not affected by materials normally found in drainage and sewage pumps
• Stainless steel screws, bolts, handle, guard and arm seal assembly
• Neoprene square ring and gasket
• Oil-filled, hermetically-sealed motor
• Oil-lubricated bearings
• Carbon and ceramic shaft seal
• Passes 2" (50 mm) spherical solids

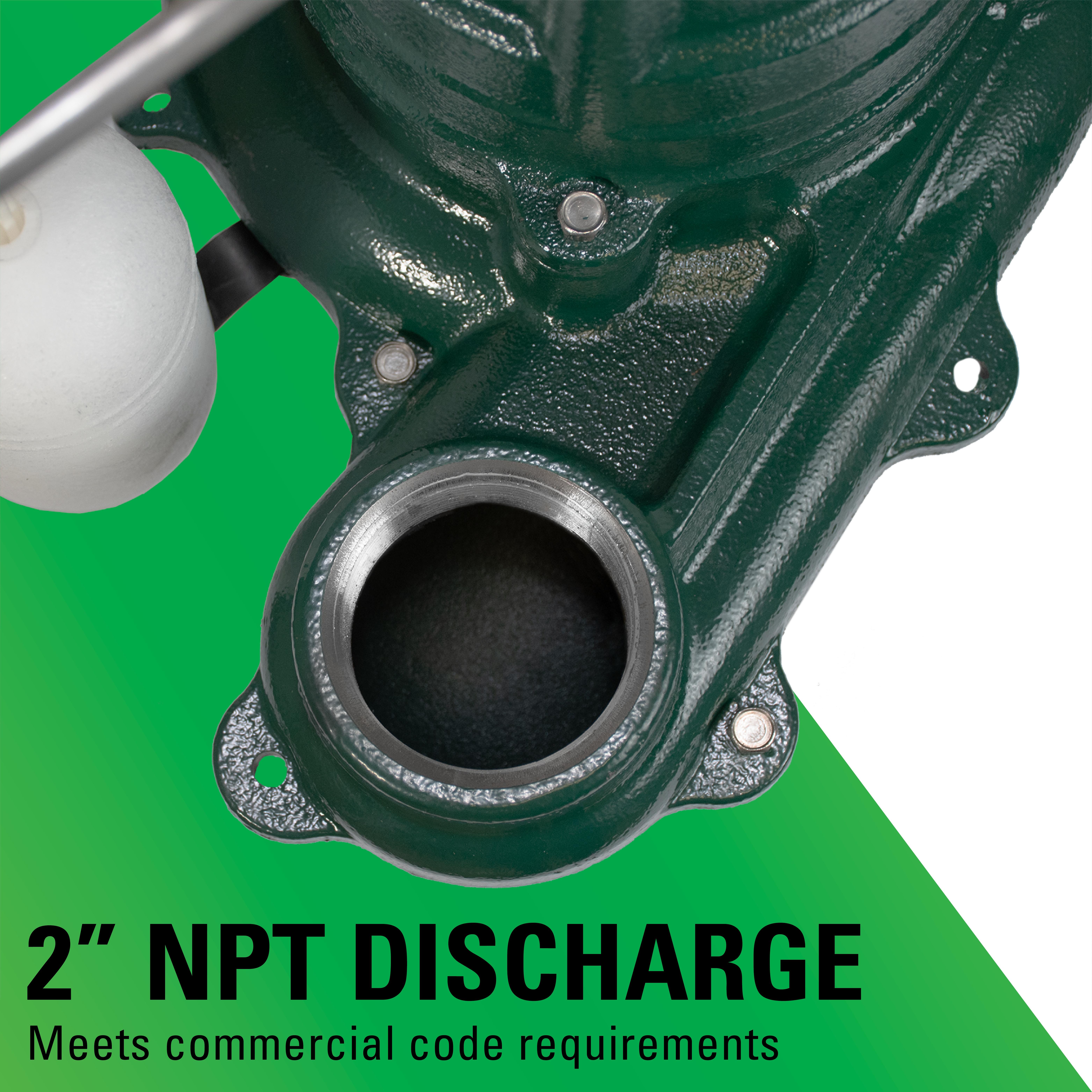

• 2" Female NPT discharge
• On point: 12" (30 cm) (automatic units)
• Off point: 4" (10 cm) (automatic units)
• Corrosion-resistant, powder coated epoxy finish
• Completely submersible
• Watertight and dust-tight
• Automatic and non-automatic models available
• Automatic reset thermal overload protection (1 Ph only)
